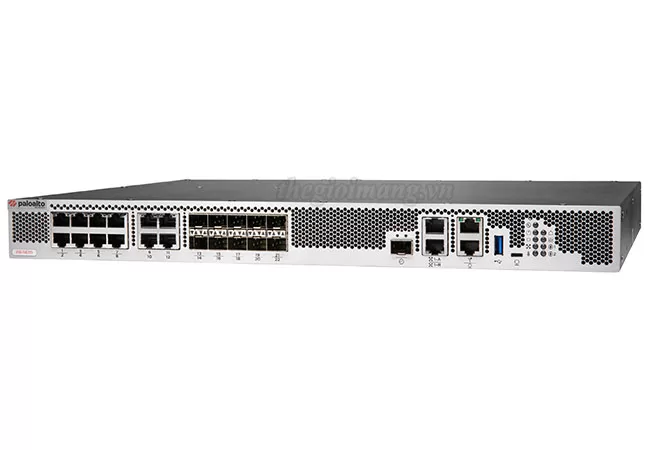

Palo Alto PA-1420 (PAN-PA-1420)
Liên hệ báo giáThiết bị tường lửa Palo Alto Networks PA-1420 (PAN-PA-1420)
- 10/100/1000 (8), Gigabit SFP (2), 10 Gigabit SFP+ (8)
- 1/2.5/5 Gb (4)/PoE; Total PoE Power Budget: 151W
- 9.9/9.5 Gbps Firewall throughput (HTTP/appmix)
- 5.2/5.0 Gbps Threat Prevention throughput (HTTP/appmix)
- 6.6 Gbps Gbps IPsec VPN throughput
- 1,400,000 Max sessions
- 140,000 New sessions per second.
Thiết bị tường lửa Palo Alto Networks PA-1420
SKU | PAN-PA-1420 |
---|---|
Performance and Capacities | |
Firewall throughput (HTTP/appmix) | 9.9/9.5 Gbps |
Threat Prevention throughput (HTTP/appmix) | 5.2/5.0 Gbps |
IPsec VPN throughput | 6.9 Gbps |
Max sessions | 1,400,000 |
New sessions per second | 140,000 |
Virtual systems (base/max) | 1/6 |
Hardware Specifications | |
I/O | 10/100/1000 (8) 1/2.5/5 Gb (4)/PoE Gigabit SFP (2) 10 Gigabit SFP+ (8) |
Management I/O | 10/100/1000 out-of-band management port (1) HSCI 10 gigabit high availability (1) RJ-45 console port (1) USB port (1) Micro USB console port (1) |
Power Over Ethernet (PoE) | Total PoE Power Budget: 151W Maximum load on single port: 90W |
Storage Capacity | 240 GB SSD |
Power Supply (Avg/Max Power Consumption) | AC 450W power supply (1) Optional for purchase 2nd AC 450W power supply (1) |
Mean Time Before Failure (MTBF) | 24 Years |
Input Voltage (Input Frequency) | 100–240 VAC (50–60Hz) |
Rack Mount Dimensions | 1U, 19″ standard rack (1.70″ H x 14.15″ D x 17.15″ W) |
Weight (Standalone Device/As Shipped) | 15.5 lbs |
Safety | cTUVus, CB |
EMI | FCC Class A, CE Class A, VCCI Class A |
Environment | Operating temperature: 0° to 40° C Non-operating temperature: -4° to 158° F, -20° to 70° C |
Airflow | Front to back |
PA-1400 Series Networking Features | |
---|---|
Interface Modes | L2, L3, tap, virtual wire (transparent mode) |
Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 |
SD-WAN | Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Dynamic path change |
IPv6 | L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption SLAAC |
IPsec VPN | Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3DES, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
VLANs | 802.1Q VLAN tags per device/per interface: 4,094/4,094 Aggregate interfaces (802.3ad), LACP |
Network Address Translation | NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation) NAT64, NPTv6 Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription |
High Availability | Modes: active/active, active/passive Failure detection: path monitoring, interface monitoring |
Zero Touch Provisioning (ZTP) | Requires Panorama 9.1.3 or higher that is managing PA-1400 Series with PAN-OS 11.0 or higher |
Data sheet Palo Alto Networks PA-1400 Series
PA-1400 Series Hardware | |
---|---|
Palo Alto Networks PA-1420 | #PAN-PA-1420 |
PA-1420 – Bundle Subscriptions for 36 months | |
GlobalProtect subscription, 3 years (36 months) term. | #PAN-PA-1420-GP-3YR |
PA-1420, Threat prevention subscription, 3 years (36 months), term | #PAN-PA-1420-TP-3YR |
PA-1420, PAN-DB URL Filtering subscription, 3 years (36 months), term. | #PAN-PA-1420-URL4-3YR |
PA-1420, WildFire subscription, 3 years (36 months), term. | #PAN-PA-1420-WF-3YR |
PA-1420, DNS security subscription, 3 years (36 months), term. | #PAN-PA-1420-DNS-3YR |
PA-1420, Advanced URL Filtering subscription, 3 years (36 months) term. | #PAN-PA-1420-ADVURL-3YR |
PA-1420, DLP subscription, 3 years (36 months), term. | #PAN-PA-1420-DLP-3YR |
PA-1420, IoT subscription, 3 years (36 months) term | #PAN-PA-1420-IOT-3YR |
SaaS Inline subscription, 3 years (36 months) term | #PAN-PA-1420-SAAS-INLINE-3YR |
Advanced Threat | |
PA-1420, Advanced Threat, 3 years (36 months) term. | #PAN-PA-1420-ATP-3YR |
PA-1420, Advanced Wild Fire subscription, 3 years (36 months) term. | #PAN-PA-1420-AWF-3YR |
Detect and Prevent Advanced Threats with Cloud-Delivered Security Services
- Advanced Threat Prevention: Stop known exploits, malware, malicious URLs, spyware, and com-mand and control (C2) with 96% prevention of web-based Cobalt Strike C2 and 48% more unknown C2 detected than the industry’s leading intrusion prevention (IPS) solution.
- Advanced WildFire malware prevention: Ensure files are safe by automatically detecting and preventing unknown malware 180x faster with the industry’s largest threat intelligence and malware prevention engine
- Advanced URL Filtering: Enable safe access to the internet with the industry’s first real-time preven-tion of known and unknown websites, stopping 76% of malicious URLs 24 hours before other vendors
- DNS Security: Gain 40% more DNS-attack coverage and disrupt the 80% of attacks that use DNS for command and control and data theft without requiring any changes to your infrastructure.
- Enterprise DLP: Minimize risk of a data breach, stop out-of-policy data transfers, and enable compliance consistently across your enterprise with 2x greater coverage of any cloud-delivered enterprise DLP
- SaaS Security: Stay ahead of the SaaS explosion with the industry’s only Next-Generation CASB to automatically see and secure all apps across all protocols.
- IoT Security: Safeguard every “thing” and implement Zero Trust device security 20x faster with the industry’s smartest security for smart devices.
