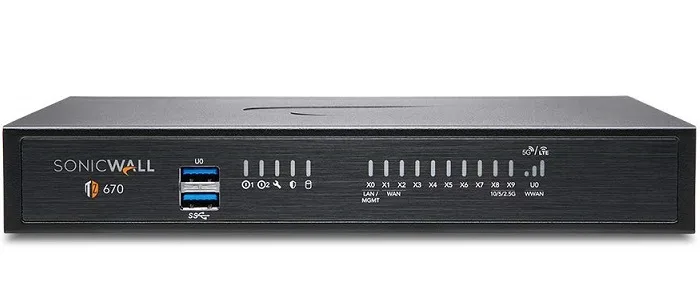

Thiết bị tường lửa SonicWall TZ670 Total Secure – Advanced Edition (02-SSC-5675)

Mô tả

Thiết bị tường lửa SonicWall TZ670 Total Secure – Advanced Edition (02-SSC-5675)

SonicWall TZ670 Appliance with 1Yr of Advanced Protection Service Suite.
Advanced Protection: Advanced Protection Service Suite (APSS) includes – Capture Advanced Threat Protection, Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Firewall Service, Content Filtering Services, Comprehensive Anti-Spam, NSM Essential with Management & 7-Day Reporting and 24×7 Support with firmware.

Thông số kỹ thuật

Model	TZ670 (02-SSC-5675)
Operating system	SonicOS 7.0
Interfaces	8x1GbE, 2x10GbE, 2 USB 3.0, 1 Console
Expansion	Storage Expansion Slot (Up to 256GB, with 32 GB included)
Management	Network Security Manager, CLI, SSH, Web UI, GMS, REST APIs
Single Sign-On (SSO) Users	2500
VLAN interfaces	256
Access points supported (maximum)	32
FIREWALL/VPN PERFORMANCE
Firewall inspection throughput	5.00 Gbps
Threat Prevention throughput	2.50 Gbps
Application inspection throughput	3.0 Gbps
IPS throughput	3.0 Gbps
Anti-malware inspection throughput	2.50 Gbps
TLS/SSL inspection and decryption throughput (DPI SSL)	800 Mbps
IPSec VPN throughput	2.10 Gbps
Connections per second	25000
Maximum connections (SPI)	1500000
Maximum connections (DPI)	500000
Maximum connections (DPI SSL)	30000
VPN
Site-to-site VPN tunnels	250
IPSec VPN clients (maximum)	10 (500)
SSL VPN licenses (maximum)	2 (200)
Encryption/authentication	DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange	Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN	RIP, OSPF, BGP
Route-based VPN	Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
VPN features	Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported	Microsoft® Windows 10
NetExtender	Microsoft® Windows 10, Linux
Mobile Connect	Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Windows 10
SECURITY SERVICES
Deep Packet Inspection services	Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS)	HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service	Yes
Application Visualization	Yes
Application Control	Yes
Capture Advanced Threat Protection	Yes
DNS Security	Yes
NETWORKING
IP address assignment	Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes	1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols	BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS	Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication	LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database	250
VoIP	Full H.323v1-5, SIP
Standards	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications	FIPS 140-2 (with Suite B) Level 2, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
HARDWARE
Form factor	Desktop
Power supply	60W external
Maximum power consumption (W)	13.1
Input power	100-240 VAC, 50-60 Hz
Total heat dissipation	55.1 BTU
Dimensions	3.5 x 15 x 22.5 (cm)
Weight	0.97 kg / 2.14 lbs
Environment (Operating/Storage)	32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)
Humidity	5-95% non-condensing
