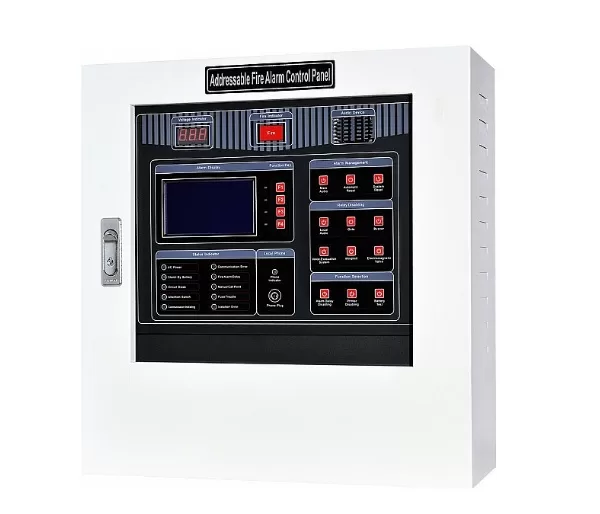

1 Loop 256 Address Fire Alarm Control Panel YUNYANG YFR-1
Liên hệ báo giá1 Loop 256 Address Fire Alarm Control Panel YUNYANG YFR-1
– Trung tâm báo cháy địa chỉ 01 loop 256 địa chỉ.
– English LCD screen (240×128 or 240 characters).
– LCD backlight energy – saving protection function.
– Two-wire circuits for super long transmission distance (up to 1.5km between the control panels and modules).
– The data memory device can store up to 2000 historical records permanently (the device in graphic system can be expandable up to 20 million records).
– Composed voice alarm function (broadcast in human voice to operators).
– Voice guidance function (while operating).
– Abormal temperature protection function (I/O modules over loading).
– SLCs, IDCs are equipped with insulation for false inspection function.
– Protection against lightning surge.
– I/O modules miswiring protection to accessories are available.
– I/O modules are equipped with segment isolation function.
– A table to review all I/O modules’ statuses is available for easier operation.
– Addresses and interlocks can be display on the LCD screen.
– Weekly automatic check function.
– Repeat alarm function.
– Two stage alarm delay function.
– Standby battery with power saving function.
– Control panel expandable function:
+ Expandable with 17 inch color touch screen, multiple functions for customers to select: remote control or monitor system software.
+ (Touch screen) Disaster Prevention Centre Control Panel.
+ Fire Graphic Control System or Riser Diagram Touch Screen Fire Alarm Display Panel.
+ It is equipped with different Authorization Levels, Individual Password Management, Fire Map Diagram Inquiry, Main Map & Sub Map Diagram, Diagram Printing, Real-time Fire Diagram Popup, Historical Data Inquiry, Operation Dara Enquiry, Stituation Simulation, Desktop Picture Editting, many Diagram Format supported and Database etc…
+ Communication Speed: when a new alarm announcement activates, the test time is less than 500ms.
+ Addressable device connection: up to 2048 addresses.
+ Serial alarm broadcast relay interface: up to 2000 contacts.
+ Addressable Fire Alarm Annuciator: up to 16 units.
+ Graphic PC: 1 unit. Graphic PC can interlink with Addressable Fire Alarm Control Panel up to 8 units.
+ Equipped with 3 sets of RS-485 communication ports. It can be use to connect with the central PC’s monitoring and control system.
+ Integrated ral-time printer (optional).
+ Disaster Prevention Control Panel can be intergrated (optional).
– Sản xuất tại Taiwan.
– Bảo hàng: 12 tháng.
