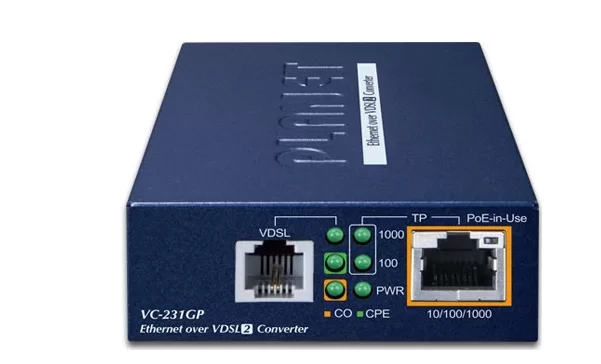

1-Port 10/100/1000T 802.3at PoE+ Ethernet to VDSL2 Converter PLANET VC-231GP
– Support 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af/802.3at PoE Injector.
– Support 1 RJ11, connector for xDSL port with VDSL2 or ADSL2+ connection.
Power over Ethernet
– Complies with IEEE 802.3at/af PoE Plus end-span PSE
– Supports PoE power up to 30.8 watts per PoE port
– Provides DC 52V power over RJ45 Ethernet cable to PD with Ethernet port
– Auto-detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
– Remote power feeding up to 100m
– IEEE 802.3at/af splitter devices compatible
VDSL2 Features
– VDSL2 stand-alone transceiver for simple bridge modem application
– Cost-effective bridge function to connect two Ethernet LANs
– Point-to-multipoint application: Compatible with PLANET and third-party VDSL2 IP DSLAM for last-mile solution
– Point-to-point application: LAN to LAN extension over phone wire
– Up to 150/150Mbps bandwidth (in G.INP, Sym, 8dB mode)
– Voice and data communication can be shared simultaneously based on the existing telephone wire with distance up to 1.4km
– ITU-T G.993.2 VDSL2 standard
– ITU-T G.993.5 G.Vectoring and G.INP
– DMT-based coding technology
– CO/CPE mode selectable via DIP switch
– Selectable target band plan (symmetric and asymmetric) and SNR margin
– Supports IEEE 802.1Q VLAN tag transparency
Hardware and Installation
– Compact size, wall-mountable design; ideal solution for space-limited locations
– Advantage of minimum installation time (Simply by Plug and Play)
– Metal case, good for heat sinking
– Supports extensive LED indicators for network diagnosis
– Additional POTS splitter to share voice and data
– Supports 6KV DC Ethernet ESD protection
Thông số kỹ thuật và tính năng
| Hardware Specifications | |
| LAN Port | 1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port |
| VDSL Port | 1 VDSL2 RJ11 female phone jack Twisted-pair telephone wires (AWG-24 or better) up to 1.4km |
| Phone Port | Additional splitter for POTS connection |
| DIP Switch & Functionality | 4-position DIP switch – CO or CPE mode selectable – Selectable G.INP and interleaved mode – Selectable target Band plan – Selectable target SNR mode |
| LED Indicators | 1 Power: Green 1 1000BASE-T LNK/ACT: Green 1 100BASE-TX LNK/ACK: Green 1 VDSL: Green 1 CO: Green 1 CPE: Green 1 PoE-in-use: Amber |
| ESD Protection | 6KV DC |
| Enclosure | Metal |
| Installation | Wall mount or DIN rail with optional kit |
| Dimensions (W x D x H) | 97 x 70 x 26 mm |
| Weight | 206g |
| Power Requirements | DC 54V, 0.74A external power |
| Power Consumption (VDSL2 + Ethernet + PoE) | CO Mode: 32.4 watts/110BTU CPE Mode : 32 watts/109BTU |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3at PoE+ PSE |
| PoE Power Output Budget | DC 52V, 30 watts |
| PoE Power Supply Type | End-span |
| Power PIN Assignment | 1/2(+), 3/6(-) |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Maximum Packet Size | 1522 bytes |
| System Specifications | |
| VDSL Compliance | VDSL-DMT – ITU-T G.993.1 VDSL – ITU-T G.997.1 – ITU-T G.993.2 VDSL2 (Profile 17a/30a support) – ITU-T G.993.5 G.Vectoring – ITU-T G.998 – G.INP |
| ADSL Compliance | Capable of ADSL2/2+ standard – ITU G.992.3 G.dmt.bis – ITU G.992.5 G.dmt.bisplus Data Rate: Up to 24Mbps |
| Performance* (Downstream/Upstream) | – Interleave, Asym, 8dB 200M —-> 190Mbps/90Mbps 400M —-> 163Mbps/64Mbps 600M —-> 110Mbps/34Mbps 800M —-> 73Mbps/18Mbps 1000M –> 49Mbps/10Mbps 1200M –> 39Mbps/8Mbps 1400M –> 25Mbps/6Mbps – Interleave, Sym, 8dB 200M —-> 149Mbps/141Mbps 400M —-> 116Mbps/115Mbps 600M —-> 72Mbps/70Mbps 800M —-> 45Mbps/44Mbps 1000M –> 26Mbps/16Mbps 1200M –> 26Mbps/12Mbps 1400M –> 29Mbps/12Mbps – G.INP, Asym, 8dB 200M —-> 192Mbps/93Mbps 400M —-> 159Mbps/64Mbps 600M —-> 106Mbps/37Mbps 800M —-> 68Mbps/19Mbps 1000M –> 49Mbps/8Mbps 1200M –> 29Mbps/8Mbps 1400M –> 26Mbps/6Mbps – G.INP, Sym, 8dB 200M —-> 150Mbps/150Mbps 400M —-> 114Mbps/113Mbps 600M —-> 69Mbps/69Mbps 800M —-> 49Mbps/39Mbps 1000M –> 27Mbps/24Mbps 1200M –> 26Mbps/12Mbps 1400M –> 21Mbps/11Mbps – Interleave, Asym, 12dB 200M —-> 177Mbps/83Mbps 400M —-> 145Mbps/57Mbps 600M —-> 92Mbps/31Mbps 800M —-> 59Mbps/15Mbps 1000M –> 44Mbps/10Mbps 1200M –> 32Mbps/6Mbps 1400M –> 22Mbps/3Mbps – Interleave, Sym, 12dB 200M —-> 136Mbps/129Mbps 400M —-> 100Mbps/101Mbps 600M —-> 58Mbps/57Mbps 800M —-> 42Mbps/36Mbps 1000M –> 23Mbps/12Mbps 1200M –> 23Mbps/10Mbps 1400M –> 17Mbps/11Mbps – G.INP, Asym, 12dB 200M —-> 177Mbps/85Mbps 400M —-> 144Mbps/51Mbps 600M —-> 87Mbps/29Mbps 800M —-> 55Mbps/15Mbps 1000M –> 40Mbps/8Mbps 1200M –> 38Mbps/8Mbps 1400M –> 26Mbps/4Mbps – G.INP, Sym, 12dB 200M —-> 136Mbps/133Mbps 400M —-> 97Mbps/102Mbps 600M —-> 54Mbps/56Mbps 800M —-> 40Mbps/35Mbps 1000M –> 24Mbps/22Mbps 1200M –> 24Mbps/9Mbps 1400M –> 18Mbps/12Mbps |
| Standards Conformance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-duplex flow control IEEE 802.1p Class of Service IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a support) ITU-T G.993.5 G.Vectoring & G.INP ITU-T G.998 |
| xDSL Compatibility | |
| VDSL2 | VC-231G VC-234G VC-231 VC-234 VC-820M VDR-301N |
| Environment | |
| Temperature | Operating: 0~50 degrees C Storage: -10~70 degrees C |
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
– Bảo hành: 24 tháng.
