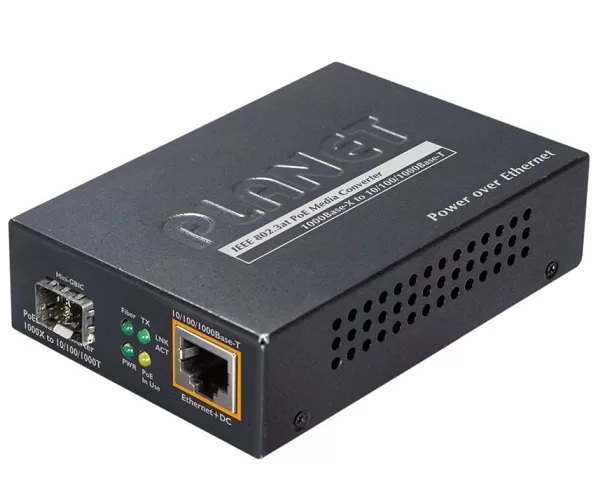

100/1000BASE-X to 10/100/1000BASE-T PoE Media Converter PLANET GTP-805A
1.716.000 ₫
100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE Media Converter PLANET GTP-805A
– The GTP-805A, a Power over Ethernet Media Converter, meets the need of higher power input and long distance transmission PoE devices. With the brand-new IEEE 802.3at High Power over Ethernet technology applied, the GTP-80x series provides the following key features:
o IEEE 802.3at / IEEE 802.3af PoE standard compliance
o Supports a maximum of 30 watts of output power
o 1000BASE-T port supports 10/100/1000Mbps in full-duplex mode
o 100/1000Mbps fiber-optic support
Specifications
Interface | |
Version | 2 |
Copper Port | 10/100/1000BASE-T Ethernet TP interface Auto-negotiation, auto MDI/MDI-X with PoE injector function |
SFP Port | 100/1000BASE-X SFP interfaces |
Fiber Mode | May vary on SFP Module |
Fiber Port Type (connector) | SFP |
Cable Distance | May vary on SFP Module |
Optical Frequency | May vary on SFP Module |
Launch Power (dBm) | May vary on SFP Module |
Receive Sensitivity | May vary on SFP Module |
Maximum Input Power | May vary on SFP Module |
Power Over Ethernet | |
PoE Output | IEEE 802.3af Power over Ethernet standard IEEE 802.3at Power over Ethernet enhancements standard |
Power Output | PoE 52V DC, max. 30 watts |
PoE Power Supply Type | Mid-span |
Power Pin Assignment | 4/5 (+), 7/8 (-) |
PoE Power Budget | 30 watts |
Hardware | |
Switch Architecture | Store-and-Forward |
Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
Maximum Frame Size | 9K |
LED | System: PWR Fiber 100/1000BASE-X: LNK / ACT (GTP-805A) Fiber 1000BASE-X: LNK / ACT (GTP-802/GTP-802S) TP 10/100/1000BASE-T: LNK / ACT PoE: Power-in-use |
Dimensions (W x D x H) | 70 x 94 x 26 mm |
Weight | 0.21kg |
Power Supply | 52V DC, 0.58A external AC-to-DC adapter |
LFP mode | Enable: Shut down either TP port or fiber port that is broken Disable: Link LED indicators still on if connection of the other end is broken |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet. IEEE 802.3at Power over Ethernet enhancements standard |
Environment | |
Temperature | 0~50 degrees C |
Humidity | 5~90% (non-condensing) |
– Sản xuất tại Đài Loan.
– Bảo hành: 12 tháng.
