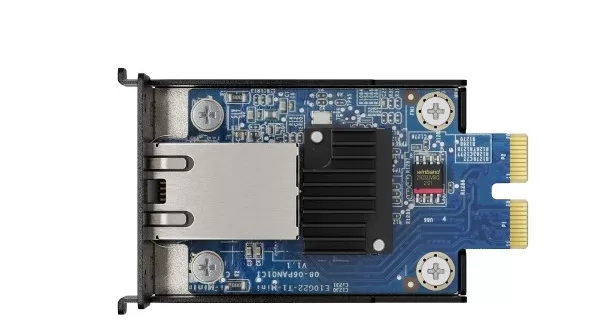

10GbE Network Upgrade Module SYNOLOGY E10G22-T1-Mini
Liên hệ báo giá10GbE Network Upgrade Module SYNOLOGY E10G22-T1-Mini
– The Synology E10G22-T1-Mini Network Upgrade Module adds 10GbE RJ-45 connectivity to compatible Synology systems, enabling small businesses and home users to maximize the performance potential of their deployments with high-performance network throughput.
– High Bandwidth: Expands system capabilities with 10GbE connectivity to support higher resolution video editing, concurrent backup ingestion, and more.
– Flexible Integration: Supports 10/5/2.5/1GbE connections to work with nearly any RJ-45 network environment.
– For Synology by Synology: Designed for maximum performance and reliability in Synology systems.
Thông số kỹ thuật và tính năng
Hardware | |
Expansion slot | Synology Network Upgrade Slot |
Size (HxWxD) | 26.37 x 45.38 x 75.7 mm |
LAN ports | 1 x 10GbE RJ-45 |
Operating environment | • Temperature: 0°C to 40°C (32°F to 104°F) • Relative humidity: 8% to 80% RH |
Storage environment | • Temperature: -20°C to 60°C (-5°F to 140°F) • Relative humidity: 5% to 95% RH |
Network | |
IEEE specification compliance | • IEEE 802.3an 10GBASE-T 10 Gbps Ethernet • IEEE 802.3bz NBASE-T 2.5/5 Gbps Ethernet • IEEE 802.3ab 1000BASE-T 1 Gbps Ethernet • IEEE 802.3u 100BASE-TX Fast Ethernet • IEEE 802.3x Flow Control |
Connector | RJ-45 copper |
Data transfer rates | 10/5/2.5/1 Gbps/100 Mbps |
Network operation mode | Full Duplex |
Supported features | • Support for 9 KB jumbo frames • TCP/UDP/IP checksum offloading • Auto-negotiation between 10/5/2.5/1 Gbps and 100 Mbps • Large Send Offload (LSO) • Receive Side Scaling (RSS) • Generic Receive Offload (GRO) • Generic Segmentation Offload (GSO) • TCP Segmentation Offload (TSO) |
– Bảo hành: 60 tháng.
