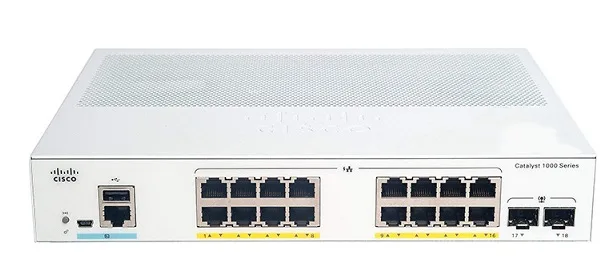

16-port Gigabit Ethernet + 2-port 1G SFP Uplinks Switch Cisco C1000-16T-E-2G-L

Name: 16-port Gigabit Ethernet + 2-port 1G SFP Uplinks Switch Cisco C1000-16T-E-2G-L
SKU: 18341
Price: 11590000 VND
Availability: InStock

11.590.000 ₫

Danh mục: Thiết bị mạng, Cisco Thẻ: 16-port Gigabit Ethernet + 2-port 1G SFP Uplinks Switch Cisco C1000-16T-E-2G-L Cisco C1000-16T-E-2G-L Thiết bị mạng Thiết bị mạng Cisco

Mô tả

16-port Gigabit Ethernet + 2-port 1G SFP Uplinks Switch Cisco C1000-16T-E-2G-L

16x 10/100/1000 Ethernet ports, 2x 1G SFP uplinks with external PS.
CLI and/or intuitive web UI manageability options.
Network monitoring through sampled flow (sFlow).
Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard.
Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console acces.
Reliability with a higher Mean Time Between Failures (MTBF) and an Enhanced Limited Lifetime Warranty support (E-LLW).
Bảo hành: 12 tháng.

Thông số kỹ thuật

Model	C1000-16T-E-2G-L
General
Gigabit Ethernet / FE ports	16 10/100/1000 RJ45 Data
Uplink interfaces	2 SFP
Fanless	Y
Dimensions (WxDxH)	10.56 x 8.26x 1.73 inch
Weight	1.42kg
RJ-45 Ethernet	1
USB mini-B	1
USB-A port for storage and Bluetooth console	1
Memory and processor
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	18 Gbps
Switching bandwidth	36 Gbps
Forwarding rate (64‑byte L3 packets)	26.78 Mpps
MAC addresses	16000
IPv4 unicast direct routes	542
IPv4 unicast indirect routes	256
IPv6 unicast direct routes	414
IPv6 unicast indirect routes	128
IPv4 multicast routes and IGMP groups	1024
IPv6 multicast groups	1024
IPv4/MAC security ACEs	600
IPv6 security ACEs	600
Maximum active VLANs	256
VLAN IDs available	4094
Maximum STP instances	64
Maximum SPAN sessions	4
MTU-L3 packet	9198 bytes
Jumbo Ethernet frame	10,240 bytes
Dying Gasp	Yes
MTBF in hours	2,165,105
Environmental
Up to 5,000ft (1500 m)	-5 to 45 deg C
Upto 10,000 (3000 m)	-5 to 40 deg C
Operating altitude	10,000 ft (3,000m)
Operating relative humidity	5% to 90% at 40 deg C (non-condensing)
Storage temperature	-13 to 158F (-25 to 70C)
Storage altitude	15,000 ft (4500m)
Storage relative humidi	5% to 95% at 65 deg C (non-condensing)
Electrical
Voltage (auto ranging)	110 to 220V AC in
Frequency	50 to 60 Hz
Current	0.19A to 0.31A
Power rating (maximum consumption)	0.05 kVA
Safety and compliance
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011
EMC: Emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: Immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. government certifications	USGv6 and IPv6 Ready Logo
Connectors and interfaces
Indicator LEDs	Per-port status: link integrity, disabled, activity System status: System
Console cables	CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
Power	Use the supplied AC power cord to connect the AC power connector to an AC power outlet Models have external power supply
