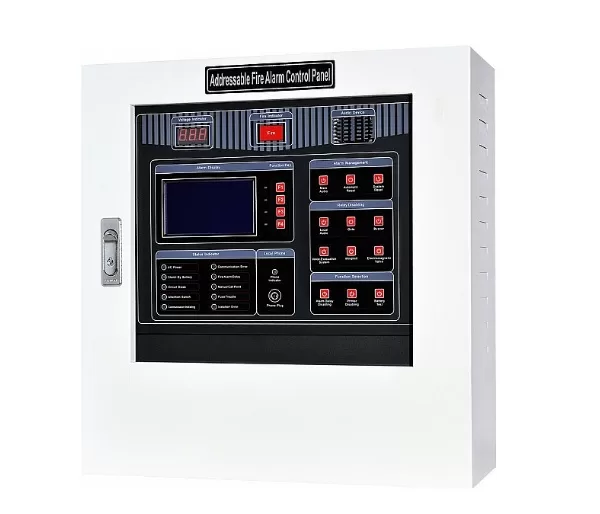

2 Loop 512 Address Fire Alarm Control Panel YUNYANG YFR-1

– Trung tâm báo cháy địa chỉ 02 loop 512 địa chỉ.

– English LCD screen (240×128 or 240 characters).

– LCD backlight energy – saving protection function.

– Two-wire circuits for super long transmission distance (up to 1.5km between the control panels and modules).

– The data memory device can store up to 2000 historical records permanently (the device in graphic system can be expandable up to 20 million records).

– Composed voice alarm function (broadcast in human voice to operators).

– Voice guidance function (while operating).

– Abormal temperature protection function (I/O modules over loading).

– SLCs, IDCs are equipped with insulation for false inspection function.

– Protection against lightning surge.

– I/O modules miswiring protection to accessories are available.

– I/O modules are equipped with segment isolation function.

– A table to review all I/O modules’ statuses is available for easier operation.

– Addresses and interlocks can be display on the LCD screen.

– Weekly automatic check function.

– Repeat alarm function.

– Two stage alarm delay function.

– Standby battery with power saving function.

– Control panel expandable function:

   + Expandable with 17 inch color touch screen, multiple functions for customers to select: remote control or monitor system software.

   + (Touch screen) Disaster Prevention Centre Control Panel.

      + Fire Graphic Control System or Riser Diagram Touch Screen Fire Alarm Display Panel.

      + It is equipped with different Authorization Levels, Individual Password Management, Fire Map Diagram Inquiry, Main Map & Sub Map Diagram, Diagram Printing, Real-time Fire Diagram Popup, Historical Data Inquiry, Operation Dara Enquiry, Stituation Simulation, Desktop Picture Editting, many Diagram Format supported and Database etc…

      + Communication Speed: when a new alarm announcement activates, the test time is less than 500ms.

   + Addressable device connection: up to 2048 addresses.

   + Serial alarm broadcast relay interface: up to 2000 contacts.

   + Addressable Fire Alarm Annuciator: up to 16 units.

   + Graphic PC: 1 unit. Graphic PC can interlink with Addressable Fire Alarm Control Panel up to 8 units.

   + Equipped with 3 sets of RS-485 communication ports. It can be use to connect with the central PC’s monitoring and control system.

   + Integrated ral-time printer (optional).

   + Disaster Prevention Control Panel can be intergrated (optional).

– Sản xuất tại Taiwan.

– Bảo hàng: 12 tháng.
