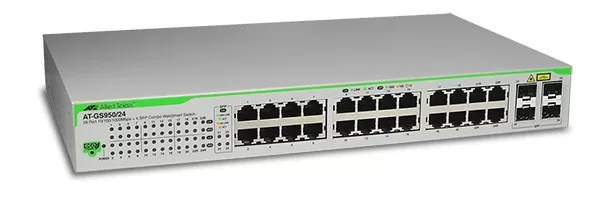

24 x 10/100/1000T ports WebSmart Switch ALLIED TELESIS AT-GS950/24
Liên hệ báo giá24 x 10/100/1000T ports WebSmart Switch ALLIED TELESIS AT-GS950/24
– 24 port 10/100/1000T WebSmart switch with 4 SFP combo ports.
– The Allied Telesis GS950/24 eco-friendly WebSmart switch upholds the Allied Telesis commitment to environmentally friendly processes and products. It is designed to minimize power consumption through the use of a high-efficiency power supply and a low power chipset.
– The GS950/24 features 24 x 10/100/1000T ports and an additional four Gigabit SFP combo ports.
– This WebSmart switch integrates the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective solution for users to integrate management at the edge of their network.
– The GS950/24 provides key features using the simple web-based management function, such as port-based VLANs, IEEE 802.1p QoS, port trunking/link aggregation, port mirroring, priority queues, and IEEE 802.1x security support.
Features
VLAN
– IEEE 802.1Q tagged.
– Port-based.
– Up to 256 groups.
Quality of Service Classification
– IEEE 802.1p tagging.
– Port-based priority.
– Four priority queues per port.
IP Multicast Support (IPv4)
– IGMP snooping (v1/v2).
– Static multicast group.
– Spanning-Tree, IEEE 802.1d/w.
IEEE 802.1x Port-based and MAC-based Network Access Control
– Local authentication server (MD5 only).
– Remote authentication through RADIUS.
– Dynamic VLAN assignment.
– RADIUS client for IEEE 802.1x.
– DHCP client.
– Statistics charts in Web
– Jumbo frames – up to 10K.
Window-based Supporting
– Switch discovery management up to 254 switches.
– Monitor list.
– Trap view.
– Device setting.
– Firmware upgrade by FTP and Web.
– Configuration back-up/restore by FTP
– Factory reset.
– Password access control and restricted IP access list.
– SNMPv1/v2c/v3.
MIBs
– RFC 1213 MIB-II.
– RFC 1643 Ethernet MIB.
– RFC 1493 Bridge MIB.
– RFC 2131 DHCP client.
– Private Enterprise MIB (Allied Telesis provides the spec) RMON Groups (1, 2, 3, 9)
– Stats.
– History.
– Alarms.
– Events.
ACL
– 240 entries (shared).
Thông số kỹ thuật và tính năng
| Model | AT-GS950/24 |
| Interface Connections | 24 port 10/100/1000T WebSmart switch with 4 SFP combo ports |
| 10/100/1000T: RJ-45 | |
| SFP: 100TX, 100FX, 1000T, 1000SX or 1000LX | |
| MAC addresses | 8K |
| Packet buffer | 4MB |
| DRAM | 64MB |
| Flash | 16MB |
| Switching capacity | 48Gbps |
| Throughput | 35.7Mpps |
| Operating temp | 0°C to 45°C (32°F to 113°F) |
| Non-operating temp | -20°C to 70°C (-4°F to 158°F) |
| Voltage | 100-240VAC |
| Frequency | 50/60Hz |
| Dimensions | 33 x 20 x 4.4cm |
| Weight | 2.3kg |
– Bảo hành: 12 tháng.
