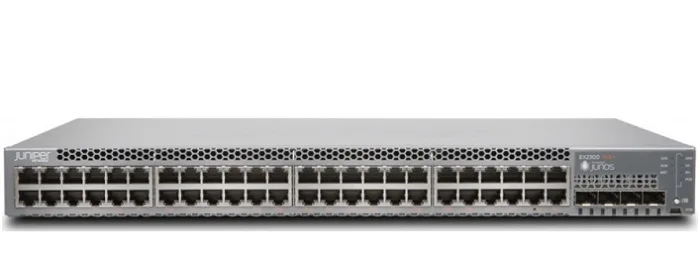

48-port 10/100/1000Base-T PoE + 4-port SFP/SFP+ Switch JUNIPER EX2300-48P-TAA
Liên hệ báo giá48-port 10/100/1000Base-T PoE + 4-port SFP/SFP+ Switch JUNIPER EX2300-48P-TAA
– 48-Port 10/100/1000BASE-T + 4-Port SFP Uplink
– Dimensions (W x H x D): 44.19 x 44.6 x 30.98 cm
– Weight: 4.49 kg
– Maximum system power consumption (Input Power without PoE) 80W AC
– Total PoE power budget 700W
– 2 GB DRAM
– Flash 2 GB
– CPU ARM CPU 1.25GHz
– GbE port density per system (48 server ports + SFP/SFP + four link ports)
– Supported optics
o RJ-45 type 10/100/1000BASE-T connector
o GbE SFP fiber/connector type: RJ-45 or LC SFP fiber supporting 1000BASE-T SFP, SX (multimode), LX (singlemode) or LH (single mode)
o Physical port redundancy: Redundant trunk group (RTG)
o Cable diagnostics to detect cable breaks and shorts
o Automatic MDI/ MDIX support (medium dependent interface/ medium dependent interface)
o Reduce port speed / set advertised maximum speed on 10/100/1000Base-T ports
o Digital optical monitoring for optical ports
– 128 Gbps packet switching capacity
– Layer 2 throughput (Mpps) 95 Mpps (wire speed)
– TAA Compliant: Yes
– Bảo hành: 12 tháng.
