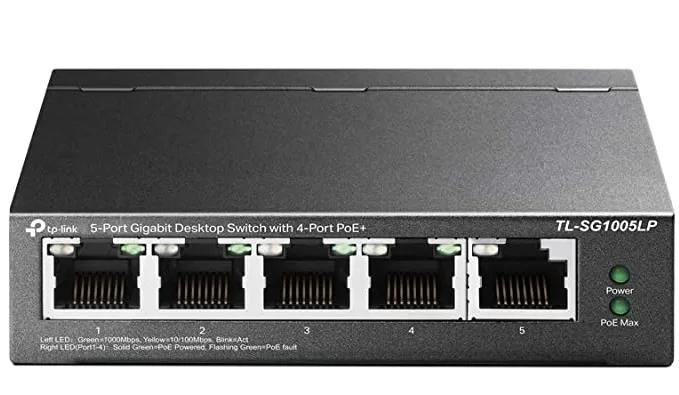

Switch TP-LINK TL-SG1005LP
790.000 ₫
Switch TP-LINK TL-SG1005LP
5× 10/100/1000 Mbps RJ45 ports.
With four PoE+ ports, transfers data and power on one single cable.
Works with IEEE 802.3af/at compliant PDs.
802.1p/DSCP QoS enable smooth latency-sensitive traffic.
Supports PoE Power up to 30 W for each PoE port.
Supports PoE Power up to 40 W for all PoE ports.
Plug and play, no configuration and installation required.
Specifications
| HARDWARE | |
| Interface | 5× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 0.81 A) |
| Packet Forwarding Rate | 7.44 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1–4 Power Supply: 40 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 10Gbps |
| Dimensions (W x D x H) | 99.8×98×25 mm |
| Max Power Consumption | 4.12 W (220/50 Hz. no PD connected) 47.5 W (220/50 Hz. with 40 W PD connected) |
| Max Heat Dissipation | 14.05 BTU/h (no PD connected) 161.98 BTU/h (with 40 W PD connected) |
| SOFTWARE | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
