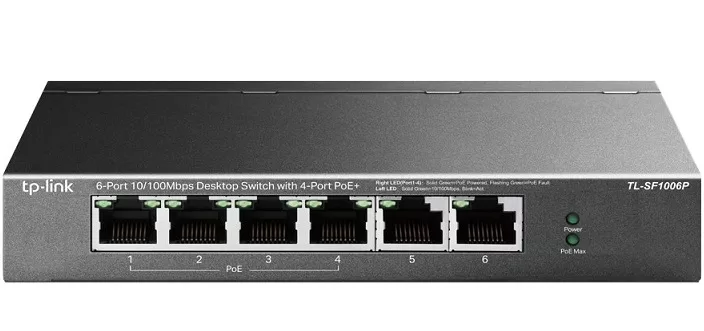

Switch TP-LINK TL-SF1006P
790.000 ₫
Switch TP-LINK TL-SF1006P
- 6× 10/100 Mbps RJ45 ports.
- 4× PoE+ ports transfer data and power on individual cables.
- Works with IEEE 802.3af/at compliant PDs.
- Up to 250m data and power transmitting range under Extend Mode.
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application.
- Supports PoE Power up to 30 W for each PoE port.
- Supports PoE Power up to 67 W for all PoE ports.
- Plug and play with no configuration required.
Specifications
Hardware | |
Interface | 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) AUTO Negotiation AUTO MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
Physical Security Lock | Yes |
External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
Packet Forwarding Rate | 0.8928 Mpps |
PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1-4 Power Supply: 67 W |
Mac Address Table | 2K |
Jumbo Frame | 2 KB |
Switching Capacity | 1.2 Gbps |
Dimensions (W x D x H) | 158 x 101 x 25 mm |
Max Power Consumption | 1.9 W (220 V / 50 Hz, no PD connected) 74 W (220 V / 50 Hz, with 67 W PD connected) |
Max Heat Dissipation | 6.48 BTU/h (no PD connected) 252.34 BTU/h (with 67 W PD connected) |
Software | |
Transmission Method | Store-And-Forward |
Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
Others | |
Certification | FCC, CE, RoHS |
Environment | Operating Temperature: 0–40℃ Storage Temperature: -40–70℃ Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
– Bảo hành: 12 tháng.
