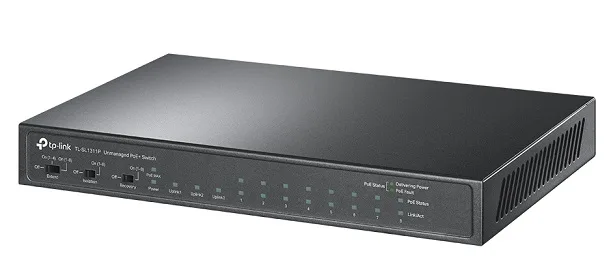

Switch TP-LINK TL-SL1311P
- 8 × 10/100Mbps RJ45 Ports, 2 × Gigabit RJ45 Ports, 1 × Gigabit SFP Port.
- 8 × PoE+ ports transfer data and power on individual cables.
- Works with IEEE 802.3af/at compliant PDs.
- Supports PoE Power up to 30 W for each PoE port.
- Supports PoE Power up to 65 W for 8 PoE ports.
- Up to 250m data and power transmitting range under Extend Mode.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
- Fanless Design reduces power consumption and works silently in its location.
- Plug and play with no configuration required.
Specifications
| HARDWARE FEATURES | |
| Interface | 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate | 5.6544 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1–8 Power Supply: 65 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 7.6 Gbps |
| Dimensions ( W x D x H ) | 209 × 126 × 26 mm |
| Max Power Consumption | 5.61 W (220 V/50 Hz. no PD connected) 77.32 W (110 V/50 Hz. with 65 W PD connected) |
| Max Heat Dissipation | 19.13 BTU/h (no PD connected) 263.7 BTU/h (with 65 W PD connected) |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) Isolation Mode Button (Ports 1–8) PoE Auto Recovery Button (Ports 1–8) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SL1311P Power Adapter Installation Guide |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
