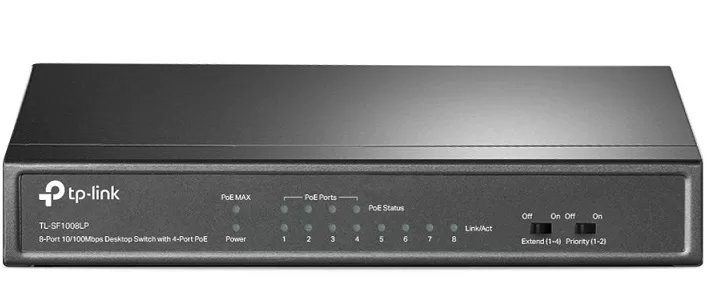

Switch TP-LINK TL-SF1008LP

Name: Switch TP-LINK TL-SF1008LP
SKU: 9803
Availability: InStock

790.000 ₫

Lưu ý: Giá sản phẩm chưa bao gồm phí vận chuyển, thuế và các chi phí khác (nếu có)

Mô tả

8× 10/100 Mbps RJ45 ports.
4× PoE ports transfer data and power on individual cables.
Works with IEEE 802.3af compliant PDs.
Up to 250m data and power transmitting range under Extend Mode.
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application.
Supports PoE Power up to 41 W for all PoE ports.
Plug and play with no configuration required.

Specifications

Hardware
Interface	8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) AUTO Negotiation AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5 VDC / 0.81A)
Packet Forwarding Rate	1.1904 Mpps
PoE Ports (RJ45)	Standard: 802.3 af compliant PoE Ports: Ports 1–4 Power Supply: 41 W
Backbound Bandwidth	1.6 Gbps
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1.6 Gbps
Dimensions (W x D x H)	171 × 98 × 27 mm
Max Power Consumption	2.2 W (220 V/ 50 Hz. no PD connected) 47.1 W (220 V/ 50 Hz. with 41 W PD connected)
Max Heat Dissipation	7.5 BTU/h(no PD connected) 160.61 BTU/h(with 41 W PD connected)
Software
Transmission Method	Store-And-Forward
Advanced Functions	Compatible With IEEE 802.3af Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
Others
Certification	FCC, CE, RoHS
Environment	Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing

– Bảo hành: 12 tháng.
