Chi tiết và thông số kỹ thuật

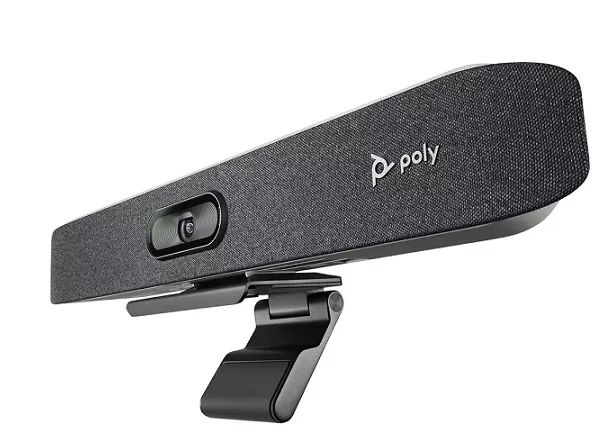

All-in-One Video Bar Poly Studio X30
– Experience boardroom-quality performance with the Poly Studio X30, your delightfully simple all-in-one video bar for huddle and small rooms. Support for leading cloud video services is built right in-no PC or Mac required.
– Get any small room up and running in minutes, with a simple setup process and all-in-one design.
– Catch even the smallest details with its 4K UltraHD 120-degree FOV camera.
– Enjoy legendary audio from Poly, with crisp, room-filling sound made possible by an innovative acoustic chamber design.
– Enjoy a seamless native experience on all the leading cloud video apps-no PC or separate gateway required.
– Ensure everyone is seen clearly with Poly DirectorAIs pinpoint-accurate automatic framing technologies.
– Keep distracting noises and side conversations from interrupting your meetings with Poly NoiseBlockAI and Acoustic Fence technologies.
Specifications
| PACKAGE INCLUDES | – Poly Studio X30 – Power supply – HDMI cable – Ethernet cable – Monitor clamp – Privacy cover |
| VIDEO STANDARDS AND PROTOCOLS | H.264 AVC, H.264 High Profile, H.265, H.239 |
| VIDEO INPUT | 1x HDMI |
| VIDEO OUT | 1x HDMI Touch display compatible |
| PEOPLE VIDEO RESOLUTION | – 4K, 30 fps (TX and RX) from 2048 Kbps – 1080p, 60 fps from 1740 Kbps – 1080p, 30 fps from 1024 Kbps – 720p, 60 fps from 832 Kbps – 720p, 30 fps from 512 Kbps |
| CONTENT VIDEO RESOLUTION | – Input + UHD (3840 x 2160) + HD (1920 x 1080p) + WSXGA+ (1680 x 1050) + UXGA (1600 x 1200) + SXGA (1280 x 1024) + WXGA (1280 x 768) + HD (1280 x 720p) + XGA (1024 x 768) + SVGA (800 x 600 – Output + UHD (3840 x 2160) + WUXGA (1920 x 1200) + HD (1920 x 1080) + WSXGA+ (1680 x 1050) + SXGA+ (1400 x 1050) + SXGA (1280 x 1024) + HD (1280 x 720) + XGA (1024 x 768) – Content frame rate + 5–60 fps (up to 4K resolution at 15 fps in call) |
| CONTENT SHARING | – Apple Airplay – Miracast – HDMI input – Whiteboarding |
| CAMERA | – 121° DFOV, 110° HFOV – 5x digital zoom – UHD 2160p (4K) capture resolution – Automatic meeting experience powered by Poly DirectorAI including group framing and speaker framing |
| AUDIO | – Poly NoiseBlockAI technology – Poly Acoustic Fence technology |
| MICROPHONES | – Four MEMS microphones – Up to 15 ft of microphone pickup range |
| AUDIO OUTPUT | – 1x HDMI – Single speaker + Power Handling (RMS) 3W + Power Handling (MAX) 5W + Sensitivity 80dB |
| OTHER INTERFACES | – 1x USB-A (3.0) – 1x USB-C – Bluetooth 5.0* – WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency* |
| AUDIO STANDARDS AND PROTOCOLS | – 22 kHz bandwidth with Polycom Siren 22 technology – 20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology – 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C – 7 kHz bandwidth with G.722, G.722.1 – 3.4 kHz bandwidth with G.711, G.728, G.729A |
| NETWORK | – IPv4 – IPv6 – 1x 10/100/1G Ethernet – Auto-MDIX – H.323 and/or SIP up to 6 Mbps in Poly App video mode – Polycom Lost Packet Recovery (LPR) technology – Dynamic bandwidth allocation – Reconfigurable MTU size – Web proxy support-basic, digest, and NTLM |
| SECURITY | – Media Encryption (H.323, SIP): AES-128, AES-256 – H.235.6 support – Authenticated access to admin menus, web interface, and APIs – BFCP – Local account password policy configuration – Security profiles – Local account and login port lockout – Secure defaults – Remote logging with support for TLS – Active directory external authentication |
| OPTIONS | – VESA and wall mount kit – Stand – Poly TC8 – Poly TC10 – Poly Bluetooth remote control – Poly Trio – Inverted mount kit – TAA, JITC and no radio versions available |
| INTEROPERABILITY | – Zoom Certified – Microsoft Teams Certified – Google Meet Certified – All cloud service providers through Poly Video App mode – USB Device Mode – Support for native 3rd party applications includes Zoom, Microsoft Teams, Google Meet, BlueJeans, Dialpad, GoToRoom, RingCentral and Tencent (China only) |
| DIGITAL SIGNAGE | – Raydiant – Appspace |
| ELECTRICAL | – Auto sensing power supply – Typical operating voltage/power + 37 VA @ 120 V @ 60 Hz + 37 VA @ 230 V @ 50/60 Hz – Typical BTU/h: 65 |
| ENVIRONMENTAL SPECIFICATION | – Operating temperature: 0 to 40 °C – Operating humidity (non-condensing): 15 to 80% – Non-operating temperature: -40 to 70 °C – Non-operating humidity (noncondensing): 5 to 95% – Maximum altitude: 16,000 ft |
| PHYSICAL CHARACTERISTICS | – 441.8 W x 62.5 H x 61.6 D (mm) – 73kg |
| MANAGEABILITY | Cloud: Poly Lens service |
– Bảo hành: 12 tháng.
