Chi tiết và thông số kỹ thuật

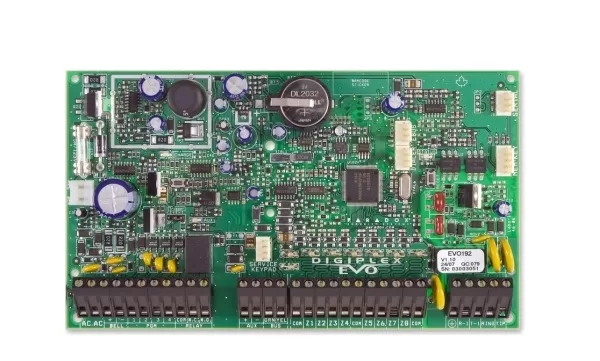

Bảng điều khiển 192 vùng có dây PARADOX EVO192
– 8 on-board zones (16 w/ zone doubling)
– Built-in access control features
– Supports PCS Series, IP Module (IP150) and Voice Module (VDMP3)
– In-field firmware upgrade via 307USB, Babyware and WinLoad
– Selectable input resistors for EOL and Tamper
– Compatible with NEware V4.0 or higher
– Automatic Daylight Savings Time feature
– PGM1 can be used as a 2-wire smoke input
– Program remote controls using the master or installer codes
– Built-in real-time clock backup battery
– 1.7A switching power supply
– 1 supervised bell output, auxiliary output and telephone line
– Patented 2 opto coupler dialer circuit – the most reliable dialer in the industry (US Patents 5751803, RE39406)
– Push button software reset (reset to default values and restart)
– Push button to activate or deactivate the Auxiliary output
– Fits in a 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal box
– The EVO series share the same programming for easy panel substitution
– EN 50131 grade 3
Specifications
| Model | EVO192 |
| Maximum Zones | 192 |
| On-Board Zones | 8 (16 with ATZ) |
| Partitions | 8 |
| Users | 999 |
| In-Field Firmware Upgradeable | Yes |
| Access Control | 32 doors |
| Events Buffered | 2048 |
| PGMs | 250 (5 on board) |
| Siren | Wired |
| Total Expansion Modules | 254 |
| Landline Speed for Programming | 300 Bps |
| Internal Power Supply | 1.7A switching |
| Input Voltage | 16 VAC, 20 / 40 VA, 50-60 Hz |
| Battery | 12 VDC, 7 Ah minimum |
| Battery Charging Current | 350 mA / 850 mA |
| Auxiliary Output | 12 VDC, 700 mA, fuseless shutdown at 1.1A |
| Bell Output | 1A, fuseless shutdown at 3A |
| PGM Output | PGM1 to PGM4: 100 mA solid-state relays with +/- trigger PGM5: Form C relay output rated at 5A / 28 VDC N.O. / N.C. |
| Operating Temperature | -10 to 55°C |
– Thương hiệu của CANADA.
– Bảo hành: 24 tháng.
