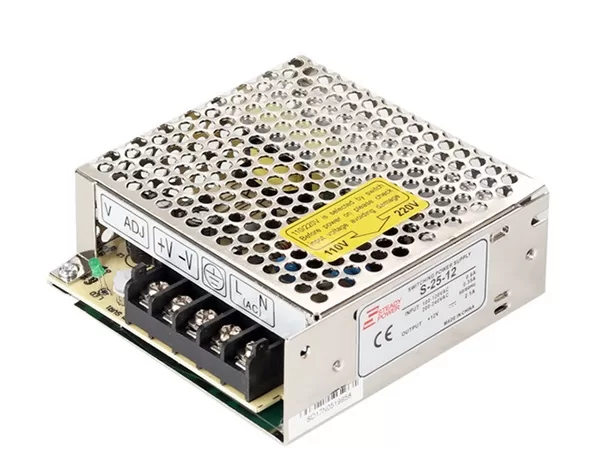

Bộ cấp nguồn dự phòng STEADY STD-25W/12V

364.000 ₫

Lưu ý: Giá sản phẩm chưa bao gồm phí vận chuyển, thuế và các chi phí khác (nếu có)

Mô tả

Bộ cấp nguồn dự phòng STEADY STD-25W/12V

– Công suất: 25W/12V.

– Bảo vệ chống ngắn mạch, quá dòng, quá áp.

Output	DC Voltage	12V
	Current rating	2.1A
	Current range	0 ~ 2.1A
	Wattage	25.2W
	Ripple & Noise (maximum)	100mVp-p
	Voltage Adj. Strip	10.8 ~ 13.2V
	Set, time increased	300ms, 50ms / 230VAC 800ms, 50ms / 115VAC when fully loaded
Input	Input voltage range	85 ~ 132VAC / 170 ~ 264VAC is selected by 240 ~ 370VDC switch
	Frequency range	47 ~ 63HZ
	Effectiveness (Typ.)	81.5% / 115VAC
	Alternating current (typ.)	0.6A / 115VAC 0.35A / 230VAC
	Inrush Current (Typ.)	COLD START 15A / 115VAC 30A / 230VAC
Protect	Overload	110 ~ 150% of the rated output power Protection type: Hiccup mode, automatic recovery after error conditions are eliminated
Protect	Overvoltage	13.8V ~ 16.2V Protection type: Hiccup mode, automatic recovery after error conditions are eliminated.
Environment	Working temperature	-10 ~ + 60 ° c (refer to ‘Derating Curve’)
	Working Humidity	20 ~ 90% RH No condensation
	Storage temperature & humidity	-20 ~ + 85 ° C, 10 ~ 95% RH
	Temperature. coefficient	± 0.03% / ° C (0 ~ 50 ° C)
	Vibrate	10 ~ 500Hz, 2G 10 minutes. Duration, time 60 minutes. Each axis along the X, Y, Z axes

– Bảo hành: 12 tháng.
