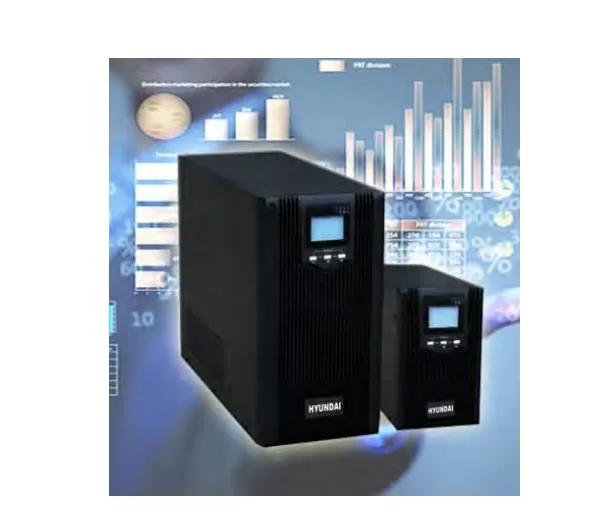

Bộ lưu điện 1500VA UPS HYUNDAI HD-1500T

6.924.000 ₫

Lưu ý: Giá sản phẩm chưa bao gồm phí vận chuyển, thuế và các chi phí khác (nếu có)

Danh mục: Hyundai Thẻ: Bộ lưu điện 1500VA UPS HYUNDAI HD-1500T Nguồn lưu điện UPS Hyundai Nguồn lưu điện-Ắc quy

Mô tả

Bộ lưu điện 1500VA UPS HYUNDAI HD-1500T

– Công suất: 1500VA/1200W.

– Nguồn điện DC đầu vào: 24V.

– Battery capacity: 12V/9Ah x 2.

– Thời gian chuyển mạch: ≤10ms.

Thông số kỹ thuật và tính năng

Model	HD-1500T
Capacity	1500VA/1200W
DC INPUT
Rated voltage	24V
DC input range (default)	20~30V
AC INPUT
AC input range (bypass mode)	0-121V/132V/138V/144Vac for 100V /110V/115V/120 Vac±10 Vac 0~242V/264V/276V/288Vac for 200V/220V/230V/240 Vac±10 Vac
AC input range (mains mode)	100V: 70-130Vac/ 110V: 80-140Vac/ 115V: 85-145Vac/ 120V: 90-150Vac 200V: 145~260Vac/ 220V: 165~280Vac/ 230: 175 ~ 290Vac/ 240V: 185~300Vac
Frequency input range	50Hz/60Hz (auto-sense). 50Hz/60Hz ± 5% – 15 %
Generator connection	Available (generator input power is settable)
OUTPUT
Inverter output range	100V/110V/115V/120V/200V/220V/230V/240Vac± 5% (settable)
AC output range (bypass mode)	0~121V/132V/138V/144Vac for 100V/110V/115V/120Vac± 10Vac 0~242V/264V/276V/288Vac for 200V/220V/230V/ 240Vac ± 10Vac
AC output range (mains mode)	100V: 90~110 Vac/ 110V: 99~121Vac/ 115V: 103~126Vac/ 120V: 108~132Vac 200V: 166~226Vac/ 220V: 188~245Vac/ 230V: 199~254Vac/ 240V: 210~264Vac
Output frequency	50/60Hz±0.3Hz (settable)
Waveform	Pure sine wave
Inverter efficiency	Max. 80%
Energy saving mode	Settable (<3% load), enter in 80s
No-load shutdown	settable (<3% load), shutdown in 80s
Transfer time	≤10ms
THDV (resistive load)	≤5%
Protections	Overload, short circuit (inverter), battery low voltage, battery overcharge, overtemperature
Overload time (mains mode)	120s for 110%, 60s for 125%, 10s for 150% (transfer to bypass mode)
Overload time (inverter mode)	60s for 110%, 10s for 125%, 5s for 150% (shutdown directly)
Mute	Automatic mute in 60s or by manual
BATTERIES
Battery capacity (H: external expansion)	12V/9Ah x 2
Charging curent	1A (default)
Equalizing charge voltage	Single battery 14.1Vdc (default), 13.6~15Vdc adjustable
Floating charge voltage	Single battery 13.5Vdc (default), 13.2~14.6Vdc adjustable
Low voltage alarm point	Single battery 10.8Vdc (default), 9.6~13Vdc adjustable
Low voltage shutdown point	Single battery 10.2Vdc (default), 9.6~11.5Vdc adjustable
COMMUNICATIONS
USB + RJ45	Supports Windows 98/2000/2003/XP/Vista/2008/7/8/10
SNMP (optional)	Power management from SNMP manager and web browser (standard with slot)
OTHERS
Operating temperature	5°C-40°C
Operating humidity	Relative humidity ≤ 93%
Noise level	≤ 50dB (1m)
Tower	Dimensions (WxDxH): 144 x 345 x 215 mm Weight: 14.2kg

– Bảo hành: 12 tháng.
