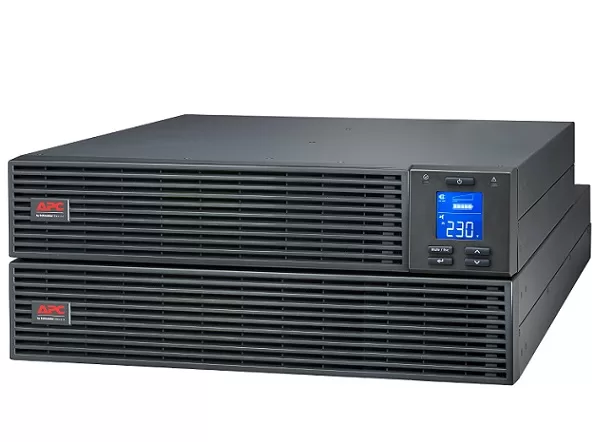

Bộ lưu điện UPS APC SRV3KRILRK-E

Thương hiệuAPC
Liên hệ tình trạng hàng Hóa đơn VAT Chính sách bảo hành
THÔNG TIN SẢN PHẨM

Chi tiết và thông số kỹ thuật

Bộ lưu điện UPS APC SRV3KRILRK-E

– Công nghệ: Double-conversion Online.

– Công suất: 2700W/ 3000VA.

– Điện thế ngõ vào: 230V.

– Điện thế ngõ ra: 230V.

– Tần số ngõ vào: 40~70Hz auto sensing.

– Tần số ngõ ra: 50/60 Hz +/- 3 Hz sync to mains.

– Dạng sóng: Sóng sine.

– Thời gian lưu điện: 13 phút (full load), 32 phút (50% load).

– Bảo hành: 36 tháng.



Thông số kỹ thuật

Model SRV3KRILRK-E
Output
Output power capacity 2700W/ 3000VA
Main Output Voltage 230V
Output Frequency 50/60 Hz +/- 3 Hz sync to mains
Topology Double conversion online
Harmonic distortion 3%
Waveform Sine wave
Efficiency 90% (full load)
Bypass type Internal bypass (automatic and manual)
Crest factor 3:1
Output connection type 6 IEC 60320 C13
1 IEC 60320 C19
Input
Main Input Voltage 230V
Input voltage range for main operations 105…300 V 40% load
180…285 V full load
Input frequency 40…70 Hz auto sensing
Input Connections IEC 60320 C20
Batteries & Run time
Battery Type Lead-acid battery
Typical recharge time 5.5 h
Expected Battery Life 3 ~ 5 years
Nominal Battery Voltage 72V
Number of battery filled slots 1
Number of battery free slots 0
Run time for full load 13min 50s
Run time for half load 32min
Communications & Management
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Control panel Multifunction LCD status and control console
General
Number of rack unit 4U
Mounting mode Rack-mounted
Dimensions (DxWxH) 63.2 x 43.7 x 17.2 mm
Weight 52.2kg
Operating Temperature 0 ~ 40°C
Storage Temperature -20~50 °C
Operating Relative Humidity 0 – 95% (non-condensing)
Storage Relative Humidity 0 – 95% (non-condensing)
Protection Class IP20

– Bảo hành: 36 tháng.
