THÔNG TIN SẢN PHẨM
Chi tiết và thông số kỹ thuật

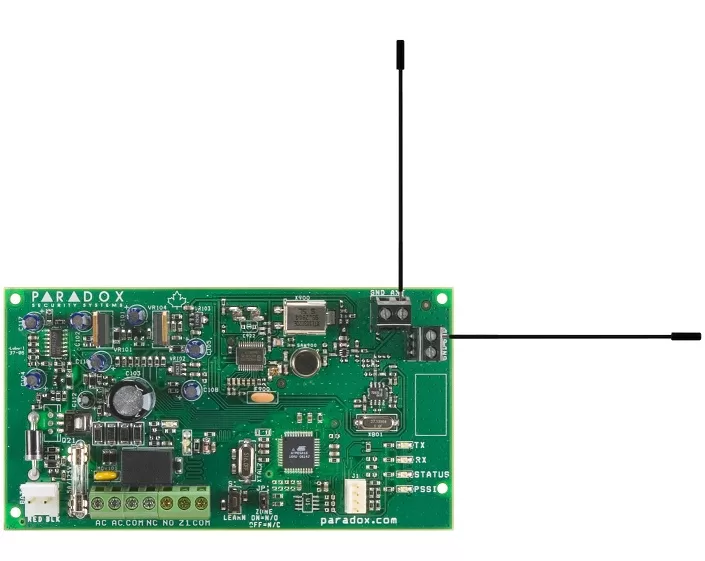

Bộ tiếp sóng PARADOX RPT1
– Extends the range of wireless communications
– Built-in transceiver
– Supports all MAGELLAN transmitters (including two-way)
– Selects which zone, PGM and / or keypad signals are repeated
– Signal strength display
– RF jamming supervision
– Fully supervised by panel or console
– 1 programmable 5A relay output
– Universal input (N.O. / N.C.)
– In-field firmware upgradeable via 307USB
Specifications
| Model | RPT1 |
| Voltage Input | 16 VAC, 20 VA minimum |
| Battery | Backup battery DC: 12 VDC 5 Ah |
| RF Frequency | 433 or 868 MHz |
| Current Consumption | 65mA |
| Wireless Range | Typical residential environment 75m (240 ft) with 433 MHz 50m (160 ft) with 868 MHz |
| Number of Outputs | 1 PGM N.O. / N.C. 5A relay, 60 VDC / 120 VAC maximum |
| Operating Temperature | 0 to 50ºC |
| Dimensions | 32 x 14 cm |
– Thương hiệu của CANADA.
– Bảo hành: 24 tháng.
