THÔNG TIN SẢN PHẨM
Chi tiết và thông số kỹ thuật

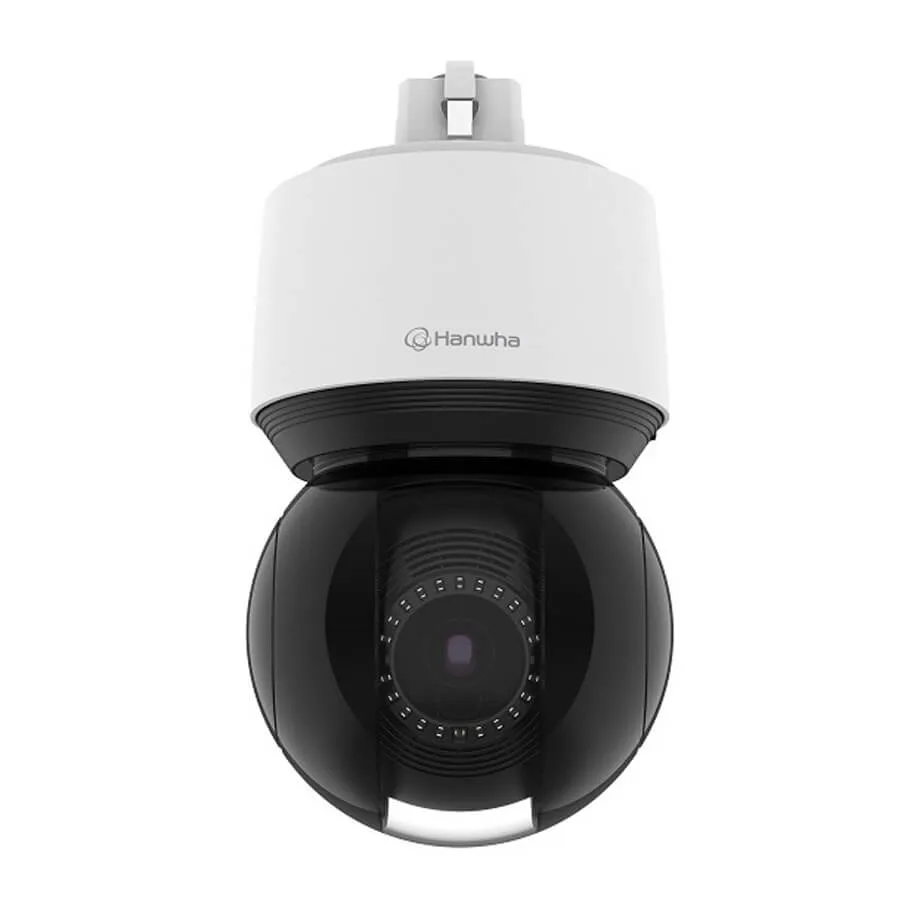

Camera IP PTZ hồng ngoại 2.0 Megapixel Hanwha Vision QNP-6250R
– Cảm biến hình ảnh: 1/2.8 inch CMOS.
– Độ phân giải: 2.0 Megapixel.
– Ống kính: 4.44~111mm (25x).
– Chuẩn nén hình ảnh: H.264, H.265, MJPEG.
– Tầm quan sát hồng ngoại: 100 mét.
– Hỗ trợ Day & Night (ICR), WDR, DIS (Built-in gyro sensor).
– Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng 256GB.
– Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
Thông số kỹ thuật và tính năng
| Model | QNP-6250R |
| Video | |
| Imaging Device | 1/2.8 inch CMOS |
| Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Frame rate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.05Lux (F1.6, 1/30sec) BW: 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~111mm(25x) zoom |
| Max. Aperture Ratio | F1.6(Wide) ~ F3.9(Tele) |
| Angular Field of View | H: 64.66˚(Wide) ~ 2.99˚(Tele) / V: 38.08˚(Wide) ~ 1.68˚(Tele) |
| Min. Object Distance | Wide: 1.5m(4.92ft), Tele: 2m(6.56ft) |
| Focus Control | Oneshot AF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360˚ Endless |
| Pan Speed | Preset: 700˚/sec, Manual: 0.024˚/sec~250˚/sec |
| Tilt Range | 110˚(-20˚~90˚) |
| Tilt Speed | Preset: 300˚/sec, Manual: 0.024˚/sec~250˚/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2 (±°20°C by temperature at preset setting) |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support (built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, Quadrangle Support |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset Handover |
| IR Viewable Length | 100m |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264, MJPEG |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Streaming | Unicast (20 users) / Multicast (128 user) Multiple streaming (Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI (HTTP API) Wisenet open platform |
| General | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 1024MB RAM, 256MB Flash |
| Operating Temperature / Humidity | Normal: -35°C~+55°(-31°F ~ +131°F) / +74°C/+165°F (MAX) based on NEMA-TS 2(2.2.7) |
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 90% RH (Non-condensing) |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE+ (IEEE802.3at, Class4) |
| Power Consumption | Typ.14.7W, Max.25.5W Camera only |
| Color / Material | Body: White / Aluminum Head: Black / Polycarbontate Hard-coated dome |
| Dimensions | Ø158×293.3mm |
| Weight | 3.1Kg |
– Bảo hành: 24 tháng.
