THÔNG TIN SẢN PHẨM
Chi tiết và thông số kỹ thuật

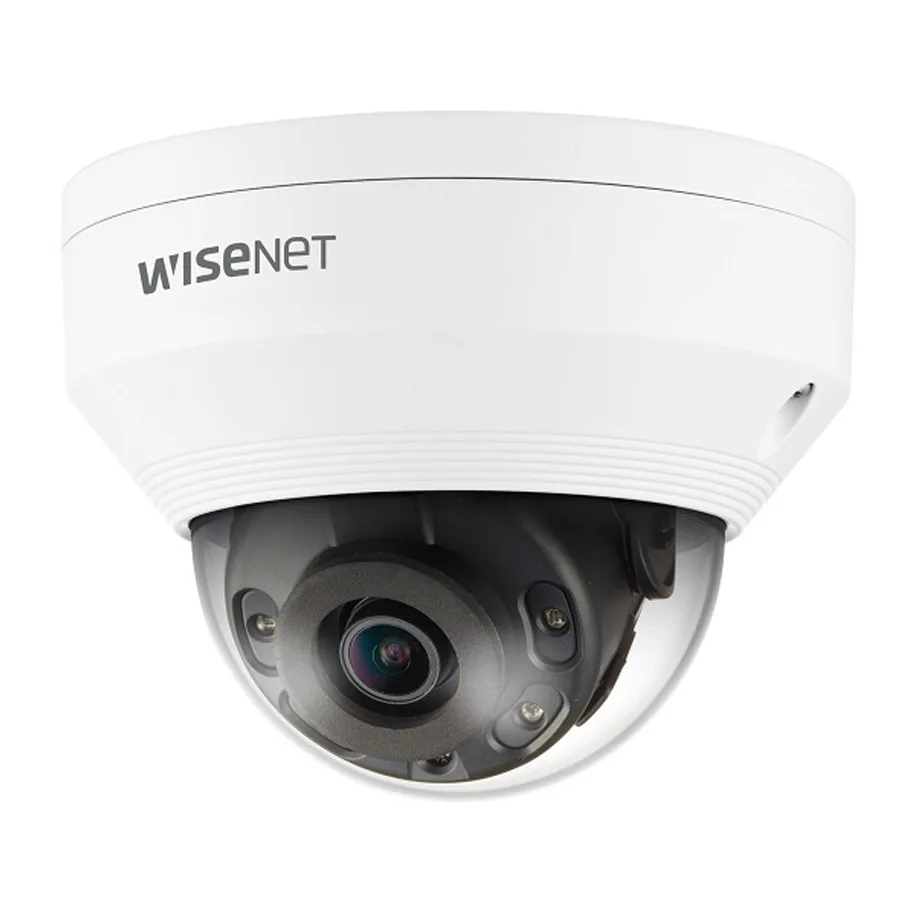

Camera IP Dome hồng ngoại 2.0 Megapixel Hanwha Vision QNV-6014R
– Cảm biến hình ảnh: 1/2.8 inch CMOS.
– Độ phân giải: 2.0 Megapixel.
– Chuẩn nén hình ảnh: H.264, H.265, MJPEG.
– Ống kính: 2.8mm (cố định).
– Tầm quan sát hồng ngoại: 20m.
– Hỗ trợ các chức năng camera: Day & Night (ICR), WDR (120dB), Motion detection, Tampering, Defocus detection.
– Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng lưu trữ 128GB.
– Tiêu chuẩn chống bụi nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Nguồn cấp: PoE, 12VDC.
Thông số kỹ thuật và tính năng
| Video | |
| Imaging Device | 1/2.8 inch 2MP CMOS |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 113.7° / V: 61.5° / D: 134.5° |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90/270-) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Selectable (mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| IR Viewable Length | 20m |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 95% RH * Start up should be done at above -30°C |
| Storage Temperature / Humidity | -40°C ~ +60°C(-40°F ~ +140°F) / Less than 95% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 10W, typical 7.8W 12VDC: Max 8.5W, typical 6.3W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø120.3×91.7mm(Ø4.74×3.61′), 510g(1.12 Ib) |
| Compatible Conduit hole / Gangbox | – SBD-120GP : Single, Double, 4′ Octagon |
| Hanging Mount (Dome) | SBP-122HMW |
| Backbox | SBV-120GW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 25.1m(82.21ft) |
| Observe (63PPM/ 19PPF) | 10.0m(32.89ft) |
| Recognize (125PPM/ 38PPF) | 5.0m(16.44ft) |
| Identify (250PPM/ 76PPF) | 2.5m(8.22ft) |
– Bảo hành: 24 tháng.
