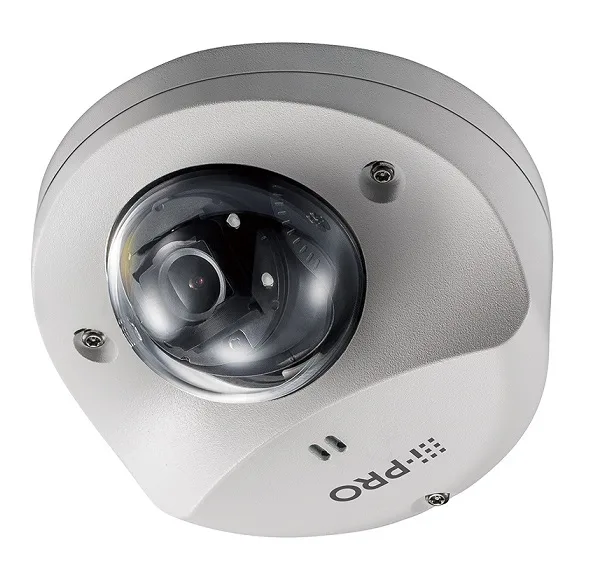

Camera IP Dome hồng ngoại 1.3 Megapixel I-PRO WV-S3512LM

Danh mục: I-PRO (Panasonic) Thẻ: Camera IP Dome hồng ngoại 1.3 Megapixel I-PRO WV-S3512LM Camera IP I-PRO Camera quan sát

Mô tả

Camera IP Dome hồng ngoại 1.3 Megapixel I-PRO WV-S3512LM

– Cảm biến hình ảnh: Approx. 1/3 inch CMOS.

– Độ phân giải camera ip: 1.3 Megapixel.

– Chuẩn nén hình ảnh: H.265 Smart Coding, H.264, JPEG.

– Tốc độ khung hình: 1 to 60 fps.

– Ống kính: 2.8 mm.

– Độ nhạy sáng tối thiểu: Color: 0.02 lx, BW: 0.01 lx; B/W: 0.0 lux (with IR LED on).

– Tầm quan sát hồng ngoại: 15 mét.

– Chế độ hành lang (xoay 90° hoặc 270°).

– Hỗ trợ tính năng iA (intelligent Auto).

– Tính năng thông minh Intelligent VMD (i-VMD): Type4 (Xâm nhập, Lảng vảng, Sai hướng, Vượt vạch, Đối tượng, Thay đổi cảnh) Bundled License.

– Hỗ trợ thẻ nhớ SDXC/SDHC/SD max 64GB.

– Kết nối: ONVIF S, G, T, Ethernet RJ-45.

– Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Nhiệt độ hoạt động: -40°C to 60°C.

– Nguồn điện: DC48V/80mA và PoE.

Thông số kỹ thuật và tính năng

Model	WV-S3512LM
Camera
Image Sensor	Approx. 1/3 type CMOS image sensor
Minimum Illumination	Color: 0.02 lx, BW: 0.01 lx (F2.3, Maximum shutter: Off (1/30s), AGC: 11) BW: 0 lx (F2.3, Maximum shutter: Off (1/30 s), AGC: 11, when the IR LED is lit) Color: 0.0013 lx, BW: 0.0007 lx (F2.3, Maximum shutter: max. 16/30s, AGC: 11)
White Balance	AWC (2,000 – 10,000 K), ATW1 (2,700 – 6,000 K), ATW2 (2,000 – 6,000 K)
Maximum shutter	Max. 1/10000 s to Max. 16/30 s
Intelligent Auto	On/ Off
Super Dynamic	On/ Off, the level can be set in the range of 0 to 31.
Dynamic Range	Max.134 dB typ. (Super Dynamic: On)
Adaptive Black Stretch	The level can be set in the range of 0 to 255.
Back light compensation/ High light compensation	BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off)
Fog compensation	On/ Off (only when Intelligent auto/ auto contrast adjust : Off)
Maximum gain	The level can be set in the range of 0 to 11.
Color/BW (ICR)	Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
IR LED Light	High/ Middle/ Low/ Off, Maximum irradiation distance : 15 m {Approx. 49 ft}
Digital Noise Reduction	The level can be set in the range of 0 to 255.
Video Motion Detection (VMD)	On/ Off, 4 areas available
Intelligent VMD (i-VMD)	Type 4 Bundled License
Privacy Zone	On/ Off (up to 8 zones available)
Image rotation	0°/ 90°/18 0°(Upside-down)/ 270°
Mirror	On/ Off
Camera Title (OSD)	On/ Off Up to 20 characters (alphanumeric characters, marks)
Lens
Zoom Ratio	1 x Optical
Digital (electronic) zoom	Choose from 3 levels of x1, x2, x4
Focal length	2.8 mm {1/8 inches}
Angular Field of View	[16 : 9 mode] Horizontal : 97° Vertical : 54° [4 : 3 mode] Horizontal : 97° Vertical : 72°
Maximum Aperture Ratio	1 : 2.3
Focus range	0.5 m {19-11/16 inches} – ∞
Adjusting Angle
Adjusting Angle	Horizontal (PAN) angle : ±45°, Vertical (TILT) angle : 0 to +90° Azimuth (YAW) angle : ±90°
Browser GUI
Camera Control	Brightness
GUI/ Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network
Network IF	10Base-T/ 100Base-TX, M12 connector
Resolution H.265/ H.264/ JPEG (MJPEG)	– 1.3 Megapixel [16 : 9] (30/60 fps1,280 x 720/ 640 x 360/ 320 x 180 – 1.3 mega pixel [4 : 3] (30 fps) 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240
H.265/ H.264	– Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort – Transmission Type: Unicast/ Multicast
JPEG	Image Quality: 10 steps
Smart Coding	GOP(Group of pictures) control [When H.264 is selected] On (Mid)/ On (Low)/ Off [When H.265 is selected] On (Frame rate control)/ On (Advanced)/ On (Mid)/ On (Low)/ Off
Smart Coding	Smart Facial Coding* Off / On (AUTO VIQS)/ On(Smart Facial Coding) *Smart Facial Coding is only available with Stream(1).
Audio Compression	G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps
Supported Protocol	– IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ – IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
microSDXC/microSDHC/ microSD Memory Card	– H.265 / H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure – JPEG recording : Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure – Compatible microSDXC/microSDHC/microSD Memory Card : Panasonic 2 GB, 4 GB, 8 GB, 32 GB, 64 GBmodel microSDHC card, **microSDXC card
Mobile Terminal Compatibility	iPad, iPhone, Android terminals
Alarm
Alarm Source	VMD alarm, Command alarm, Audio detection alarm
Alarm Actions	microSDXC/microSDHC/microSD memory recording, E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output
Input/ Output
Built-in microphone	Nondirectional electret condenser microphone
General
Safety	UL (UL60950-1 2Ed), c-UL (CAN/CSA C22. NO.60950-1-07), CE, IEC60950-1 EN45545 compliant, NFPA130
EMC	FCC (Part15 Subpart B, ClassA, SDoC), ICES-003 ClassA, EN55032 ClassB, EN55024, ECE-R10, EN50498, EN50121
Power Source and Power Consumption	PoE (IEEE802.3af compliant, alternative A) Device: DC48V/ 80mA, Approx. 3.8 W (Class 2 device)
Ambient Operating Temperature	-40 °C to +60 °C (-40 °F to 140 °F)*11 {Power On range : –20 °C to +60 °C (–4 °F to +140 °F)}
Ambient Operating Humidity	10 to 100 % (no condensation)
Water and Dust Resistance	IP66 (IEC60529), Type 4X(UL50), NEMA 4X compliant
Shock Resistance	IK10 (IEC 62262)
Railway Application	EN50155: 2017 Class OT2/ST2 (EN 50155: 2007 Class TX), IEC62236-3-2
Dimensions	ø109 mm x 53 mm (H) {ø4-9/32 inches x 2-3/32 inches (H)} Dome radius 27 mm {1-1/16 inches}
Mass (approx.)	Approx. 410 g {0.91 lbs}
Finish	Main body: Aluminum die cast, Light gray Dome section: Polycarbonate resin, Clear
