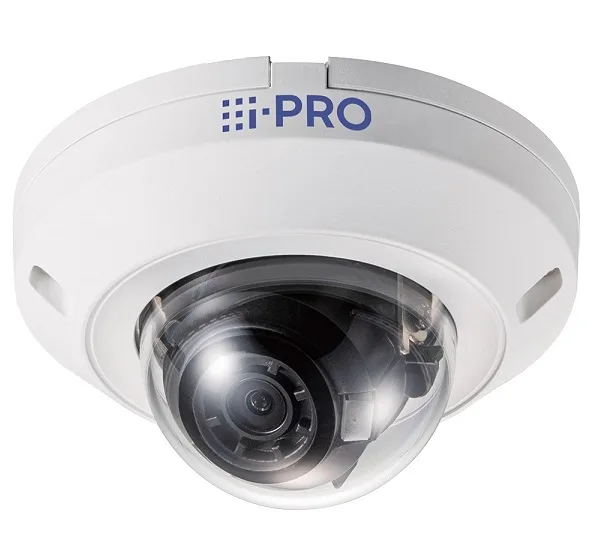

Camera IP Dome hồng ngoại 2.0 Megapixel I-PRO WV-U2530LA
Liên hệ báo giáCamera IP Dome hồng ngoại 2.0 Megapixel I-PRO WV-U2530LA
– Camera IP Dome ngoài trời Full HD.
– Cảm biến hình ảnh: 1/3 inch CMOS.
– Độ phân giải: Full HD 1080p lên đến 30 khung hình/giây.
– Chuẩn nén hình ảnh: H.265, Smart coding.
– Tiêu cự: 3.2 mm.
– Tầm quan sát hồng ngoại: 30 mét.
– Hỗ trợ tính năng iA (Tự động thông minh).
– Hỗ trợ siêu động Super Dynamic 120dB.
– Tầm nhìn ban đêm có màu: 0,006 đến 0,1lx.
– Chế độ hành lang (90 độ hoặc 270 độ khi xoay hình ảnh).
– Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Cấu hình ONVIF G / S / T.
– Hỗ trợ thẻ nhớ
o microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
o microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
o microSD memory card: 2 GB
Thông số kỹ thuật
Model | WV-U2530LA |
Image Sensor | Approx. 1/3 type CMOS image sensor |
Minimum Illumination | Color: 0.1 lx, BW: 0.04 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) BW: 0 lx (50IRE, F2.0, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit) Color: 0.006 lx, BW: 0.0025 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) |
White Balance | ATW1/ ATW2/ AWC |
Maximum Shutter | [30fps mode] Max. 1/10000 s to Max. 16/30 s [25fps mode] Max. 1/10000 s to Max. 16/25 s |
Intelligent Auto | On / Off |
Super Dynamic | On / Off, The level can be set in the range of 0 to 31. |
Dynamic Range | Max.120 dB (Super Dynamic: On, Level: 31) |
Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
Back Light Compensation/High Light Compensation | BLC (Back light compensation) / HLC (High light compensation) / Off The level can be set in the range of 0 to 31. (only when Super Dynamic/ Intelligent auto: Off) |
Fog Compensation | On / Off, The level can be set in the range of 0 to 8. (only when Intelligent auto / auto contrast adjust: Off) |
Maximum Gain (AGC) | The level can be set in the range of 0 to 11. |
Color/BW (ICR) | Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
IR LED Light | High/ Middle/ Low/ Off Maximum irradiation distance: 30 m {Approx. 100 ft} |
Digital Noise Reduction | The level can be set in the range of 0 to 255. |
Video Motion Detection (VMD) | On / Off, 4 areas available |
SCD (scene change detection) | On / Off, 1 area available |
VIQS | On / Off, Up to 8 zones available |
Image Rotation | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) |
Focal Length | 3.2 mm {1/8 inches} |
Optical Zoom | 1x |
Extra zoom | 1.0x – 1.5x(when resolution is 1280×720) |
Digital (Electronic) Zoom | Choose from 3 levels of x1, x2, x4 |
Angular Field of View | [16 : 9 mode] Horizontal : 100°, Vertical : 54° [ 4 : 3 mode] Horizontal : 81°, Vertical : 60° |
Maximum Aperture Ratio | 1 : 2.0 |
Focusing Range | 1 m {39-3/8 inches} – ∞ |
Camera Control | Brightness |
GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
Network IF | 10Base-T / 100Base-TX, RJ45 connector |
Resolution H.265 | [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180 [ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA |
H.265 | [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort [Transmission Type] Unicast port(AUTO) / Unicast port(MANUAL) / Multicast |
JPEG | [Image Quality] 10 steps |
Smart Coding | GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off AUTO VIQS: On/ Off |
Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
SDXC/SDHC/SD Memory Card (Option) | H.265 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure Compatible microSDXC/microSDHC Memory Card: microSD speed class6 or higher Panasonic 32 GB*, 64 GB**model *microSDHC card, **microSDXC card |
Mobile Terminal Compatibility | iPad, iPhone, AndroidTM terminals |
ONVIF Profile | G / T |
Alarm Source | VMD alarm, SCD alarm, Command alarm |
Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, Panasonic alarm protocol output |
Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device: DC48 V 100 mA, Approx. 4.8 W (Class 2 device) |
Ambient Operating Temperature | -30 °C to +50 °C (-22 °F to +122 °F) |
Ambient Operating Humidity | 10 to 100 % (no condensation) |
Water and Dust Resistance | IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant |
Shock Resistance | IK10 (IEC 62262) |
Wind Resistance | Up to 40 m/s {approx. 89 mph} |
Dimensions | ø109 mm (W) x 62 mm (H) |
Mass (Approx.) | 270 g {0.60 lbs} |
Finish | Main body: Aluminum die cast / Polycarbonate resin, i-PRO white Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Dome cover: Polycarbonate resin, Clear |
– Bảo hành: 12 tháng.
