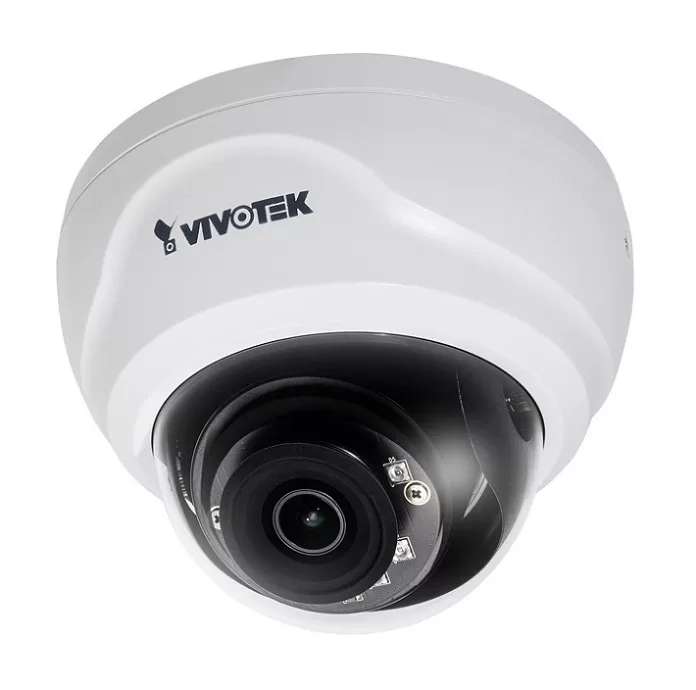

Camera IP Dome hồng ngoại 2.0 Megapixel Vivotek FD8169A
5.796.000 ₫
Camera IP Dome hồng ngoại 2.0 Megapixel Vivotek FD8169A
– Cảm biến hình ảnh: 1/2.7 inch Progressive CMOS.
– Chuẩn nén hình ảnh: H.264 và MJPEG.
– Độ phân giải: 1920 x 1080 (2 Megapixel).
– Độ nhạy sáng: Màu: 1.22 Lux @ F2.0. Trắng đen: 0.008 Lux @ F2.0 (B/W), 0 Lux @ IR LED ON.
– Tốc độ tối đa khung hình: 30 hình/ giây.
– Ống kính: f = 2.8 mm.
– Zoom số: 48x.
– Số đèn LED hồng ngoại: 6 đèn IR LED.
– Tầm quan sát hồng ngoại: 20 mét.
– Kết nối mạng: 10 Base-T/100Base TX Ethernet (RJ45).
– Tích hợp khe cắm thẻ nhớ MicroSD/SDHC/SDXC.
– Tích hợp chuẩn ONVIF.
– Chức năng camera quan sát Ngày và Đêm.
– Chức năng hồng ngoại thông minh Smart IR.
– Quan sát đêm tối ưu ở điều kiện ánh sáng thấp (SNV).
– Smartstream II tối ưu hóa hiệu quả băng thông.
– Chức năng giảm nhiễu số 3D-DNR.
– Chức năng chống ngược sáng WDR.
– Chức năng chống sương mù Defog.
– Số người kết nối truy cập đồng thời: 10 người.
– Hỗ trợ giao thức: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP.
– Chức năng cấp nguồn qua mạng PoE 802.3af.
Thông số kỹ thuật và tính năng
CPU | Multimedia SoC (System-on-Chip) |
Flash | 128 MB |
RAM | 256 MB |
Image sensor | 1/2.7 inch Progressive CMOS |
Maximum Resolution | 1920 x 1080 (2MP) |
Lens Type | Fixed-focal |
Focal Length | f = 2.8 mm |
Aperture | F 2.0 |
Field of View | 105º (Horizontal) |
87º (Vertical) | |
135º (Diagonal) | |
Shutter Time | 1/5 sec. to 1/32,000 sec. |
Day & Night | Removable IR-cut filter for day & night function |
Minimum Illumination | 1.22 Lux @ F2.0 (Color) |
0.008 Lux @ F2.0 (B/W) | |
0 Lux @ IR LED ON | |
Pan range | 348º |
Tilt range | 70º |
Rotation Range | 345º |
Pan / Tilt / Zoom | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
IR Illuminators | Built-in IR illuminators, effective up to 20 meters |
IR LED x 6 | |
On-board Storage | MicroSD/SDHC/SDXC card slot |
Compression | H.264 & MJPEG |
Maximum Frame Rate | 30 fps @ 1920×1080 in both compression |
Maximum Streams | 3 simultaneous streams |
S/N Ratio | Above 53 dB |
Dynamic Range | 54.5 dB |
Video Streaming | Adjustable resolution, quality and bit rate |
Configurable video cropping for bandwidth saving | |
Image Settings | Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, 3D Noise Reduction |
Users | Live viewing for up to 10 clients |
Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP |
Interface | 10 Base-T / 100 BaseTX Ethernet (RJ45) |
ONVIF | Supported |
Video Motion Detection | Triple-window video motion detection |
Alarm Triggers | Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection |
Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server |
File upload via HTTP, SMTP, FTP and NAS server | |
Connectors | RJ45 for Network/PoE connection |
LED Indicator | System power and status indicator |
Power input | IEEE 802.3af PoE Class 3 |
Power consumption | Max. 6.5 W |
Dimensions | Ø128 x 98 mm |
Weight | Net: 435 g |
Safety Certifications | CE C-Tick FCC ( Class B ) LVD VCCI |
Operating System | Microsoft Windows 7/ Vista/ XP/ 2000 |
Browser | Mozilla Firefox 7~10 ( Streaming only ) |
Internet Explorer 7/8/9 | |
Other Players | VLC: 1.1.11 or above |
QuickTime: 7 or above |
– Sản xuất tại Taiwan.
– Bảo hành: 12 tháng.
