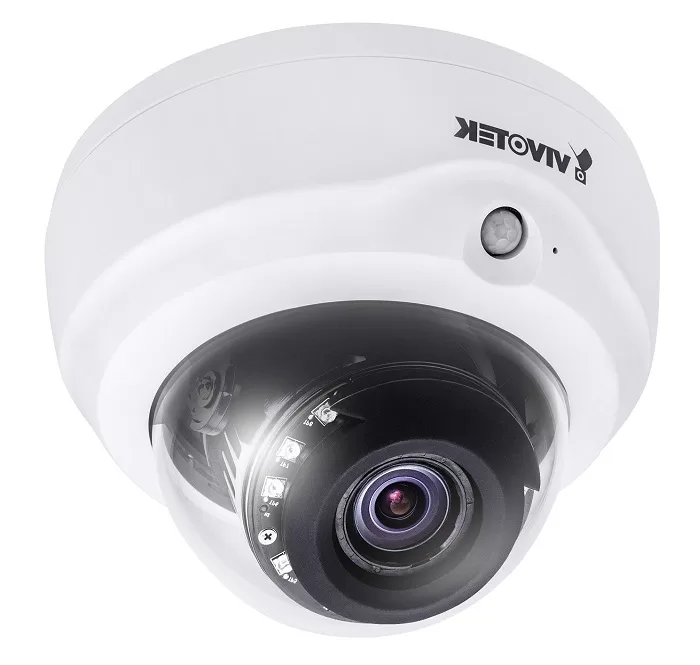

Camera IP Dome hồng ngoại 3.0 Megapixel Vivotek FD9171-HT
20.244.000 ₫
Camera IP Dome hồng ngoại 3.0 Megapixel Vivotek FD9171-HT
– Cảm biến hình ảnh: 1/2.8 inch Progressive CMOS.
– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
– Độ phân giải: 2048 x 1536 (3.0 Megapixel).
– Độ nhạy sáng: Màu: 0.01 Lux @ F1.2. Trắng đen: 0.001 Lux @ F1.2.
– Ống kính: f = 3 ~ 9 mm.
– Zoom số: 48x.
– Auto-iris: P-iris.
– Tầm quan sát hồng ngoại: 30 mét.
– Kết nối mạng: 10 Base-T/100Base TX Ethernet (RJ45).
– Tích hợp khe cắm thẻ nhớ MicroSD/SDHC/SDXC.
– Tích hợp chuẩn ONVIF.
– Hỗ trợ âm thanh 2 chiều.
– Hỗ trợ Remote Focus.
– Tích hợp đầu dò cảm biến PIR thân nhiệt phát hiện người để cảnh báo.
– Chức năng camera quan sát Ngày và Đêm.
– Quan sát đêm tối ưu ở điều kiện ánh sáng thấp (SNV).
– Chức năng hồng ngoại thông minh Smart IR.
– Smart stream II tối ưu hóa hiệu quả băng thông.
– Chức năng giảm nhiễu số 3D-DNR.
– Chức năng chống ngược sáng WDR Pro.
– Chức năng chống sương mù Defog.
– Số người kết nối truy cập đồng thời: 10 người.
– Hỗ trợ giao thức: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X.
– Chức năng cấp nguồn qua mạng PoE.
Thông số kỹ thuật và tính năng
CPU | Multimedia SoC (System-on-Chip) |
Flash | 128 MB |
RAM | 512 MB |
Image Sensor | 1/2.8 inch Progressive CMOS |
Maximum Resolution | 2048 x 1536 (3MP) |
Lens Type | Vari-Focal |
Focal Length | f = 3 ~ 9 mm |
Aperture | F1.2 ~ F2.3 |
Auto-iris | P-iris |
Field of View | 41º ~ 86º (Horizontal) |
31º ~ 64º (Vertical) | |
51º ~ 113 (Diagonal) | |
Shutter Time | 1/5 sec. to 1/16000 sec. |
WDR Technology | WDR Pro |
Day/Night | Removable IR-cut filter for day & night function |
Minimum Illumination | 0.01 Lux @ F1.2 (Color) |
0.001 Lux @ F1.2 (B/W) | |
Pan/Tilt/Zoom Functionalities | ePTZ: |
48x digital zoom (4x on IE plug-in, 12x built in) | |
IR Illuminators | 30 meters |
On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot |
Seamless Recording | |
Compression | H.265 & H.264 & MJPEG |
Maximum Frame Rate
| H.265 & H.264: 30fps@ 2048 x 1536 30fps@ 1920 x 1080 MJPEG: 15fps@ 2048 x 1536 30fps@ 1920 x 1080 |
Maximum Streams | 3 simultaneous streams |
S/N Ratio | 43 dB |
Dynamic Range | 100 dB |
Video Streaming | Adjustable resolution, quality and bitrate |
Smart Stream II | |
Image Settings | Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings, 3DNR, video rotation, defog |
Audio Capability | Two-Way Audio (full duplex) |
Compression | G711, G726 |
Interface | Internal microphone input |
Audio output | |
Effective Range | 5m |
Users | Live viewing for up to 10 clients |
Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,802.1X, UDP, ICMP, ARP, SSL, TLS |
Interface | 10 Base-T/100 BaseTX Ethernet (RJ45) |
ONVIF | Supported |
Video Motion Detection | Five-window video motion detection |
VCA | Line crossing detection, field detection, loitering detection |
Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card |
File upload via HTTP, SMTP, FTP, NAS server and SD card | |
Smart Focus System | Remote focus |
Connectors | RJ45 cable connector for Network/PoE connection |
Audio input | |
Audio output | |
DC 12V power input | |
Digital input x 1 | |
Digital output x 1 | |
LED Indicator | System power and status indicator |
Power Input | 12VDC |
IEEE 802.3af/at PoE Class 0 | |
Power Consumption | Max. 12 W |
Dimensions | Ø138 x 103 mm |
Weight | 530 g |
Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick, UL |
Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
Web Browser | Mozilla Firefox 7~10 (streaming only) |
Internet Explorer 7/8/9/10/11 | |
Other Players | VLC: 1.1.11 or above |
Quicktime: 7 or above |
– Sản xuất tại Taiwan.
