Camera IP hồng ngoại 3.0 Megapixel TP-LINK VIGI C330I (4mm)

Thương hiệuTP-Link
Còn hàng Hóa đơn VAT Chính sách bảo hành
THÔNG TIN SẢN PHẨM

Chi tiết và thông số kỹ thuật

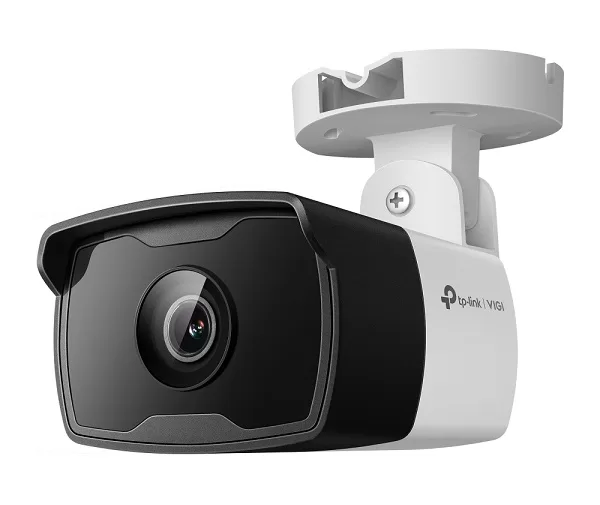

Camera IP hồng ngoại 3.0 Megapixel TP-LINK VIGI C330I (4mm)

– 3MP Super-High Definition: The VIGI C330I camera comes with 3MP — more than enough pixels to pick up some of the more discrete details.

– Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

– Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.

– Smart Video Enhancement: VIGI’ s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

– H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

– Waterproof: Reliable IP67 for stable outdoor performance.

– PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.

– Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

Thông số kỹ thuật và tính năng

CAMERA
Cảm biến hình ảnh 1/2.8” Progressive Scan CMOS
Tốc độ màn trập 1/3 to 1/10000 s
Phơi sáng Yes
Nhạy sáng tối thiểu Color: 0.01 Lux; 0 Lux with IR light
Cơ chế Ngày/Đêm IR Cut Filter
Chuyển đổi Ngày/Đêm Day/Night/Auto/Schedule-Switch
ỐNG KÍNH
Loại Fixed Focal Lens
Độ dài tiêu cự 4mm
Khẩu độ 4mm: F2.0
FOV 4mm:
Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3°
Ngàm ống kính M12
VIDEO
Độ phân giải tối đa 2304 × 1296
Luồng chính Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2304×1296, 2048×1280, 1920×1080, 1280×720
Luồng phụ Frame Rate
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704×576, 640×480, 352×288, 320×240
Kiểm soát Bit Rate CBR, VBR
Nén video Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Loại H.264 Main Profile/High Profile
H.264+ Main Stream Supported
Loại H.265 Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
ĐÈN CHIẾU SÁNG
Đèn hồng ngoại IR Quantity: 2
Range: 30m
Wavelength: 850nm
Điều khiển bật/tắt đèn chiếu sáng Auto/Scheduled/Always on/Always off
ĐIỀU CHỈNH GÓC (THỦ CÔNG)
Vùng Pan: -90° to 90°
Tilt: -90° to 90°
HÌNH ẢNH
Cài đặt hình ảnh Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Tăng cường hình ảnh BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Chuyển đổi thông số hình ảnh Yes
Vùng riêng tư Up to 4 Masks
ROI 1 Region
Cài đặt OSD Yes
MẠNG
Bảo mật Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Lưu trữ mạng NAS (NFS, SMB/ CIFS)
Giao thức TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Xem trực tiếp đồng thời 3 Main Streams & 3 Sub-Streams
Kết nối và điều khiển VIGI App, VIGI Security Manager, VIGI NVR, Web
Cloud Yes
ONVIF Yes
GIAO DIỆN KẾT NỐI
Kết nối mạng 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Nguồn DC Power Port
QUẢN LÝ SỰ KIỆN VÀ BÁO ĐỘNG
Sự kiện thông minh Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Message Push
Output Notification Message Push
THÔNG TIN CHUNG
Nhiệt Độ Hoạt Động -30~60 °C
Storage Temperature -40~60 °C
Storage Humidity 95% or Less (Non-Condensing)
Độ Ẩm Hoạt Động 95% or Less (Non-Condensing)
Material Plastic
Khối lượng tịnh 0.2 Kg
Trọng lượng 0.35 Kg
Power Consumption Maximum: 5 W
Typical (Day Mode): 1.32 W
Typical (Night Mode with IR LED): 2.68 W
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Protection IP67
Dimensions (L x W x H) 174 × 74 × 71 mm

– Bảo hành: 24 tháng.
