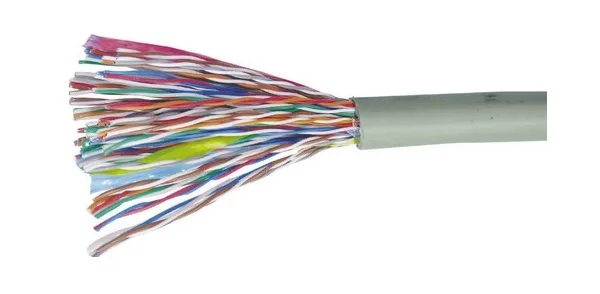

Cáp mạng VIVANCO CAT5e U/UTP VCCAUU55CMG3 (305m/Box, CM, Grey)

Lưu ý: Giá sản phẩm chưa bao gồm phí vận chuyển, thuế và các chi phí khác (nếu có)

Mô tả

Cáp mạng VIVANCO CAT5e U/UTP VCCAUU55CMG3 (305m/Box, CM, Grey)

– Cáp mạng CAT5e 50 pair U/UTP Unshielded Cable, 305 m/Box, CM, Grey.

– Part number: VCCAUU55CMG3.

Compliance

– ANSI/ICEA-90-661

– TIA/EIA-568-C.2.

Construction

– U/UTP.

– Jacket diameter: 11±0.5mm.

Features & Benefits

– Suitable for 1000Base-T, Ethernet application.

– 25 year system warranty.

Electrial Characteristics
Direct Current Resistance of Each Conductor	≤ 9.38 Ω / 100 m
Operating Capacitance	≤ 5.6 nF/ 100m
Unbalanced Capacitance	≤ 330 pF/ 100m
Impedance (ohms)	1~100MHz 100±15%
NVP	70%
Delay Deviation	≤ 45ns
Physical Characteristics
Minimum Bending Radius	15 times max jacket diameter
Installation Temperature	0~50°C (+32~122°F)
Storage Temperature	-20~75°C (-4~167°F)
Operating Temperature	-20~60°C (-4~140°F)
