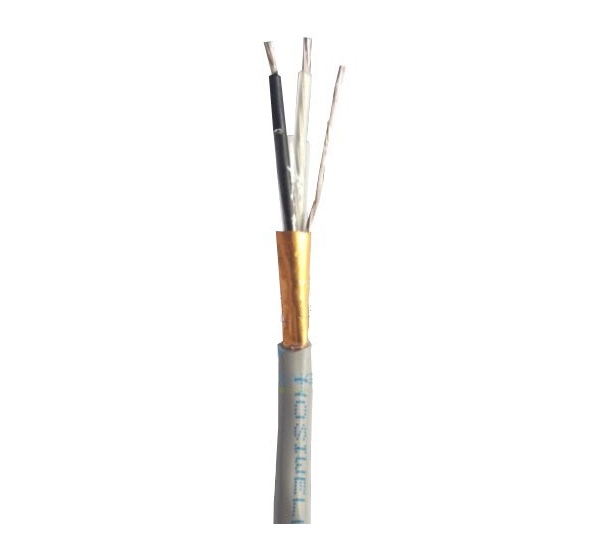

Cáp tín hiệu chống nhiễu HOSIWELL 9220

Part Number: 9220

Cáp Hosiwell tín hiệu vặn xoắn chống nhiễu Cu/PE/OSCR/PVC, 1P x 20 AWG -300V/500V, 305m/Drum, Grey (20AWG tương đương 0,50 mm²).

Specifications

– No of Pair: 1

– Conductor Size: 20 AWG, 10 x 30 AWG

– Conductor: Tinned Copper

– Drain Wire Size: 20 AWG

– Drain Wire: Tinned Copper

– Insulation: PE (High Density Polyethylene)

– Shielding (Coverage 100%): Aluminum Foil-Polyester Tape

– Insulation Thickness: 0.40 mm

– Insulation Diameter: 1.80 mm

– Jacket Thickness: 1.05 mm

– Jacket Diameter: 5.9 mm

– Max. Recommended  Pulling Tension: 204N

– Min. Bending Radius Minor Axis: 50 mm

– Outer Jacket, Colour: PVC, Grey

– Operation Temperature: -10°C to 75°C

– Package: 305m/drum

– Applications: For building sound, broadcast, audio control and Instrument use. Passes UL FT4 flame test

– Sản xuất tại Thái Lan.
