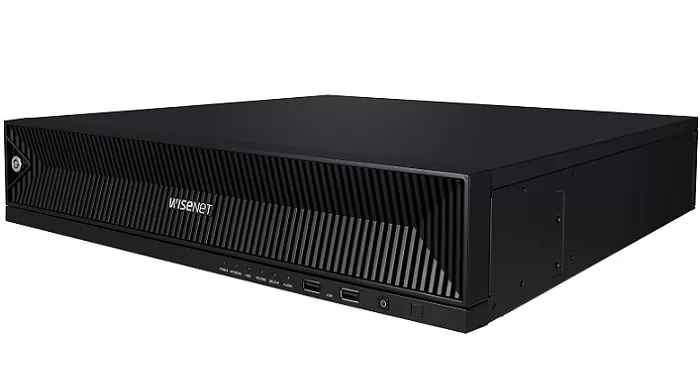

Đầu ghi hình camera IP 16 kênh Hanwha Vision XRN-1620B2

23.540.500 ₫

Lưu ý: Giá sản phẩm chưa bao gồm phí vận chuyển, thuế và các chi phí khác (nếu có)

Danh mục: Đầu ghi hình Hanwha Vision Thẻ: Camera quan sát Đầu ghi hình camera IP 16 kênh Hanwha Vision XRN-1620B2 Đầu ghi hình Hanwha Vision

Mô tả

Đầu ghi hình camera IP 16 kênh Hanwha Vision XRN-1620B2

– Up to 16CH 32MP supported

– Max. 140Mbps network camera recording

– HDMI out

– User friendly UI / UX

– AI search support when working with Wisenet AI camera

– Dynamic Event support

o New event function of cameras is available without software update

– H.265, H.264, MJPEG codec supported

– Bookmark management (Up to 100 set)

– SATA 8ea (Up to 80TB)

Specifications

Display
Network camera	Inputs		Max. 16CH
	Resolution		32MP ~ CIF
	Protocols		SUNAPI, ONVIF
Decoding	Local Display		FHD: HDMI & VGA Dual monitor UHD: HDMI Single monitor
	Multi Screen		[Local Monitor] – Dynamic layout, Virtual channel view – Clone mode : Up to 16 Division – Expand mode : Up to 9 Division [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
	Resolution		[Local Monitior] FHD Clone mode: 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps) UHD Single mode: 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps) FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps) Clone/Single mode: Up to 25fps when displaying more than 10CH
Performance
Operating System	Embedded		Linux
Record	Compression		H.265, H.264, MJPEG
	Recording Bandwidth		Max. 140Mbps
	Resolution		32MP ~ CIF
	Mode		Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark
	Event Trigger		Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
	Event Action		e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shotdown
Search & Play	Playback Bandwidth		Max. 32Mbps
	User		Max. 4 Users (Local 1, Remote 3)
	Simultaneous Playback		Max. 64CH(Local 16CH, Remote 16CH per user)
	Fisheye Dewarping		CMS
	Mode		Date & Time (Calendar), Event list, Text Search, Smart Search
	Resolution		CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP)
	Playback Control		Fast/Slow Forward / Backward, Move one step Up / Down
Storage	Supported HDD		Up to 10TB
	HDD Slot		SATA 8ea (Max. 80TB)
Backup	File backup		BU/Exe(GUI), JPG/AVI(Network)
	Function		Multi channel(Up to 16CH) Play, Date-Time/Title display
Network
Protocol			IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNS			Hanwha DDNS
Transmission Bandwidth			Max. 140Mbps
Audio	Input/Output		16 CH(network)
	Compression		G.711, G.726, AAC(16/48KHz)
	Audio Communication		2-Way
Max Remote Users			Search (3), Live Unicast(10), Multicast (20)
Security			IP address filtering, User access Log, 802.1x, Encryption Device certificate (Hanwha Techwin Root CA), Signed firmware
Functions
Camera Setup		Register	Auto, Manual
		Item	IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ		Control	Via GUI, Webviewer, SPC-2000
		Preset	300 Presets
Smart phone		Support Model	iOS, Android
		Protocol Support	RTP, RTSP, HTTP, CGI(SUNAPI)
		Control	Live 16CH(Multi-Profile Support), Playback 4CH
		Max. Remote Users	Search(3), Live Unicast(10)
Redundancy		Failover	N+1
		ARB	Support
Easy configuration			P2P(QR code)
Interface
Storage			Yes
HDMI			1EA 3840×2160 30Hz
VGA			1EA 1920×1080 60Hz
Audio			Out 1EA (3.5mm Audio Jack)
Ethernet			RJ-45 2EA (LAN/WAN, 1Gbps)
Alarm			In 4EA, Out 2EA
USB			3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0)
Power inlet			AC 1EA
General
Operating Temperature			0°C to +40°C(32℉ to 104℉)
Operating Humidity			20% ~ 85% RH
Power Input			100 ~ 240 VAC ±10%; 50/60 Hz
Power Consumption			130W
Color / Material			Black / Metal
Dimension (WxHxD)			440 x 89.8 x 428.4 mm
Weight			5.71Kg

– Bảo hành: 24 tháng.
