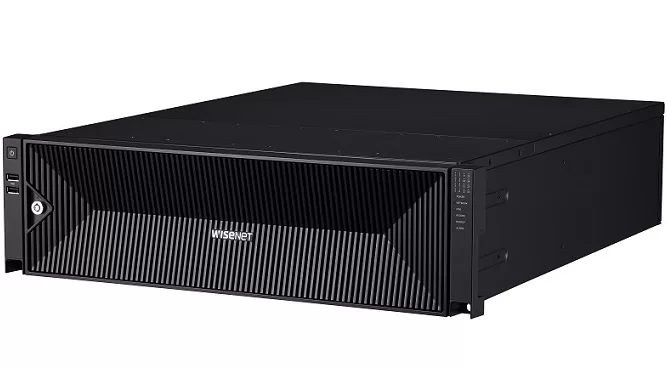

Đầu ghi hình camera IP 32 kênh Hanwha Vision XRN-3210B4

84.582.500 ₫

Lưu ý: Giá sản phẩm chưa bao gồm phí vận chuyển, thuế và các chi phí khác (nếu có)

Danh mục: Đầu ghi hình Hanwha Vision Thẻ: Camera Camera quan sát Đầu ghi hình camera IP 32 kênh Hanwha Vision XRN-3210B4 Đầu ghi hình Hanwha Vision Hanwha

Mô tả

Đầu ghi hình camera IP 32 kênh Hanwha Vision XRN-3210B4

– Up to 32CH, 32MP Resolution

– Max. 400Mbps network camera recording

– HDMI out

– User friendly UI / UX

– AI search support when working with Wisenet AI camera

– Dynamic Event support

– Bookmark management (Up to 100 set)

– H.265, H.264, MJPEG compression support

– SATA 16ea (Up to 160TB)

– RAID 5/6 support

Specifications

Display
Network camera	Inputs	Max. 32CH
	Resolution	32MP ~ CIF
	Protocols	SUNAPI, ONVIF
Decoding	Local Display	[Dual Display]
		HDMI 1: 3840 x 2160 (30Hz)
		HDMI 2: 1920×1080 (60Hz)
	Multi Screen Display	[Local Monitor] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ 25/ 36/ Sequence [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
	Resolution	32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(960fps)
Performance
Operating System	Embedded	Linux
Record	Compression	H.265, H.264, MJPEG
	Recording Bandwidth	Max. 400Mbps
	Resolution	32MP ~ CIF
	Mode	Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark
	Event Trigger	Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
	Event Action	e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play	Playback Bandwidth	RAID Mode: Max. 64Mbps(32CH simultaneously) Non-RAID Mode: Max. 32Mbps
	User	Max. 4 Users (Local 1, Remote 3)
	Simultaneous playback	Max. 80CH(Local 32CH, Remote 16CH per user)
	Fisheye Dewarping	CMS
	Mode	Date & Time (Calendar), Event list, Text Search, Smart Search
	Resolution	CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
	Playback Control	Fast/Slow Forward / Backward, Move one step Up / Down
Storage	Supported HDD	Up to 10TB
	HDD Slot	SATA 16ea (Max. 160TB, Non-RAID mode)
	External	iSCSI storage
	RAID	RAID-5/6(Array Size : 8 HDDs x 2 Array)
Backup	File backup	BU/Exe(GUI), JPG/AVI(Network)
Backup	Function	Multi channel (Up to 16CH) Play, Date-Time/Title display
Network
Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS		Hanwha DDNS
Transmission Bandwidth		Max. 400Mbps
Audio	Input/Output	32 CH(network)
	Compression	G.711, G.726, AAC (16/48KHz)
	Audio Communication	2-Way
Max Remote Users		Search(3), Live Unicast(10), Multicast(20)
Security		IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer	Supported OS	Windows 10, macOS 10.13
Web viewer	Supported browser	Google Chrome, Microsoft Edge, Mac Safari
Functions
Camera Setup	Register	Auto, Manual
Camera Setup	Item	IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ	Control	Via GUI, Webviewer, SPC-2000
PTZ	Preset	300 Presets
Smart phone	Support Model	iOS, Android
	Protocol Support	RTP, RTSP, HTTP, CGI(SUNAPI)
	Control	Live 16CH(Multi-Profile Support), Playback 4CH
	Max. Remote Users	Search(3), Live Unicast(10)
Redundancy	Failover	N+1
Redundancy	ARB	Support
Easy configuration		P2P(QR code)
Interface
Storage		OK
Reset		Power button
HDD Key Lock		OK
HDMI		2EA ( Playback/Setup → HDMI1)
		HDMI1: 3840×2160 30Hz
		HDMI2: 1920×1080 60Hz
Audio		Out 1EA
Ethernet		RJ-45 3EA (LAN/WAN, 1Gbps)
Alarm		In 8EA, Out 4EA
USB		4EA (Front 2 x USB 2.0, Rear 2 x USB 3.0)
Power inlet		AC 1EA
Environmental
Operating Temperature		0°C to +40°C(32℉ to 104℉)
Operating Humidity		20% ~ 85% RH
Electrical
Power Input		100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Single SMPS)
Power Consumption		Max. 265W (904.2 BTU with HDD 16ea)
Mechanical
Color / Material		Black / Metal
Dimension (WxHxD)		440.0 x 132.0 x 571.1mm
Weight		Approx. 13.4Kg (29.6 lb, HDD not included)
Intelligent Analysis
AI Search	Object Attribute	Compatible for Wisenet AI Camera
