THÔNG TIN SẢN PHẨM
Chi tiết và thông số kỹ thuật

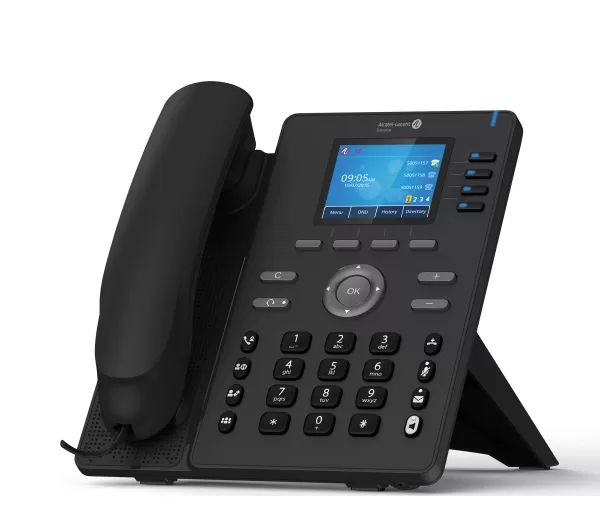

Điện thoại IP Alcatel H6
– Part Number: 3MK27012AA.
– Alcatel H6 là dòng điện thoại IP có màn hình màu 2.8-inch, 4 dòng có đèn nền.
– 4 tài khoản SIP account.
– Các phím chức năng: Handsfree, mute, info, headset, hold, transfer, conference, redial, and hang up.
– Danh bạ lên tới 1000 contact.
– Kết nối: Cổng USB-A, cổng tai nghe RJ9, RJ-45 LAN (10/100/1000M Ethernet), RJ-45 PC through 10/100/1000M Ethernet switch.
– Open VPN.
– Hỗ trợ cấp nguồn ngoài (chưa bao gồm Adapter) hoặc cấp nguồn qua mạng PoE.
Thông số kỹ thuật và tính năng
| Physical Characteristics | – Dimensions (L x W x H): 214 x 191 x 47 mm – Weight: 795 g (with handset and stand) – 2.8-inch, 320×240 color display – Adjustable stand: 45° & 50° – Wall mountable (optional accessory) |
| Keys | – 4 LED line keys – 4 menu keys (corresponding to display) – Volume keys (+ and -) – 4-way navigation, along with return and confirm keys – 9 function keys: handsfree, mute, info, headset, hold, transfer, conference, redial, and hang up – Standard dial pad |
| Telephony Features | – 4 SIP accounts – Incoming/outgoing/rejected – Call forwarding – Call waiting – Call hold/resume – Redial – Speed dial – Mute/unmute – Do not disturb (DND) – Auto answer – Voicemail – Local 5-party conference – Call Log (1000 entries) – Contacts (1000 entries) |
| Audio Characteristics | – Full-duplex handsfree – Codec: Opus (NB and WB), G.722, ILBC, G711 (a-law and u-law), G.729AB – Voice Activity Detection (VAD) – Comfort Noise Generation (CNG) – Acoustic Echo Cancellation (AEC) – DTMF: In-Band, RFC 2833/4733, SIP info – Hearing Aid Compatible (HAC) |
| Power | – Power over Ethernet (IEEE 802.3af), Class 2 – Power adapter: 5V/2A DC output (optional) |
| Connectivity | – RJ-45 LAN: 10/100/1000M Ethernet – RJ-45 PC through 10/100/1000M Ethernet switch – RJ-9 handset connector – USB Type-A connector |
| Network, Security, and Other Protocols | – SIP V2: RFC 2474, 2833, 3261, 3263, 3264, 3265, 3325, 3550, 4566, 4568, 5359, 6086, etc. – Static IP and DHCP – IPv4 – IEEE 802.1AB/LLDP-MED -QoS: 802.1p/Q tagging (VLAN), Layer 3 TOS, DSCP – TFTP/HTTP/HTTPS/TR069 – OPENVPN, 802.1x – Authentication: basic or digest – Denial-of-service (DoS) attack prevention – TLS 1.2/1.0 and SRTP support – Ships with X509v3 certificate, with support for client certificate installation |
| Configuration | – Web-based management, phone configuration, and automated configuration – ALE Easy Provisioning Server (EPS) – ALE Easy Deployment Server (EDS) |
| Languages | Multi-language menu support: Simplified Chinese, Traditional Chinese, English, French, German, Italian, Korean, Portuguese, and Spanish |
| Regulatory Standards | Security: IEC 62368-1:2014, ANSI/UL 62368-1-2014, CAN/CSA-C22.2 NO. 62368-1-14 EMC: – EN 55032, CISPR 32 – EN 55024, CISPR 24 – EN 61000-3-2, EN 61000-3-3 – 47 CFR Part 15 B Subpart B – ICES-003 Issue 6 |
| Telecommunications Standards | TIA/EIA 810-B, TIA 920.130-A-1, AS/CA S004 |
| Eco Design | – ErP 2009/125/EC, WEEE 2012/19/EU – ROHS 2011/65/EU, China RoHS 2.0: GBT 26572-2011 – REACH (EC1907/2006) – Proposition 65 – Packaging: EU 94/62/EC |
| Hearing Aid Compatibility | FCC 47 CFR Part 68, CS-03, AS/ACIF S040 |
| Environmental Conditions | – Operating temperature: -5°C to +45°C – Relative humidity: 5% to 95% – Storage/transportation temperature: -25°C/+70°C |
– Bảo hành: 12 tháng.
