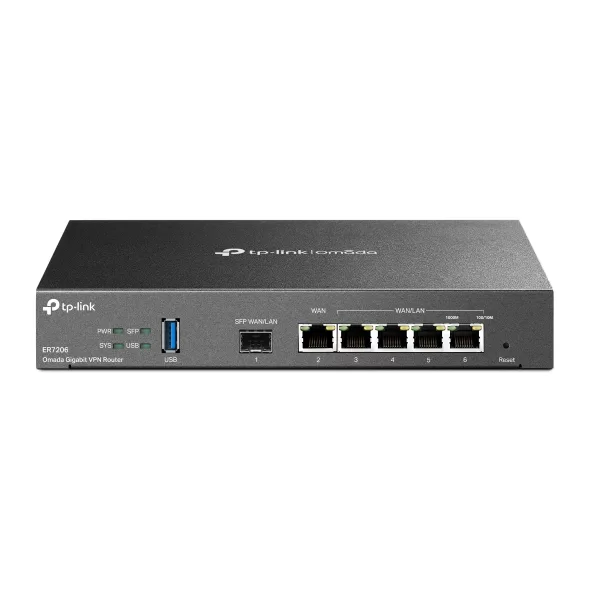

Router TP-Link TL-ER7206

Còn hàng Hóa đơn VAT Bảo hành chính hãng

THÔNG TIN SẢN PHẨM

Chi tiết và thông số kỹ thuật

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
Up to 5 WAN Ports: Gigabit SFP WAN port and gigabit RJ45 WAN port optimize bandwidth usage.
Highly Secure VPN^△: Supports multiple VPN protocols including SSL / Wireguard / OpenVPN/ IPSec / GRE VPN^§/ PPTP/ L2TP/ L2TP over IPSec, helping users to establish VPN connections more flexibly
Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.

BẢO MẬT
Access Control	Source/Destination IP Based Access Control
Bộ lọc	• WEB Group Filtering^§• URL Filtering• Web Security^§
ARP Inspection	• Sending GARP Packets^§• ARP Scanning^§• IP-MAC Binding
Attack Defense	• TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN

TÍNH NĂNG PHẦN CỨNG
Chuẩn và Giao thức	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Giao diện	• 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port• 4 Gigabit LAN/WAN Ports • 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
Mạng Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Số lượng quạt	Fanless
Nút	Reset Button
Bộ cấp nguồn	12V DC/ 1A Power Adapter
PoE Budget	–
Flash	128 MB NAND
DRAM	512 MB DDR4
LED	PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Kích thước ( R x D x C )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Bảo vệ	4 kV surge protection
Enclosure	Steel
Lắp	Desktop/ Wall-Mounting
Tiêu thụ điện tối đa	• 7.5 W (with USB 3.0 connected)• 4.5 W (without USB 3.0 connected)

HIỆU SUẤT
WireGuard VPN	341.3 Mbps
Concurrent Session	150,000
New Sessions /Second	5,300
NAT (Static IP)	945.3 Mbps / 940.5 Mbps
NAT(DHCP)	939.6 Mbps / 940.9 Mbps
NAT(PPPoE)	943.6 Mbps / 940.9 Mbps
NAT (L2TP)	880.1 Mbps / 859.0 Mbps
NAT (PPTP)	855.0 Mbps / 907.2 Mbps
64 Byte Packet Forwarding Rate	–
IPsec VPN Throughput	• ESP-SHA1-AES256: 617.1 Mbps• ESP-SHA256-AES256: 592.8 Mbps• ESP-SHA384-AES256: 592.4 Mbps• ESP-SHA512-AES256: 604.5 Mbps
OpenVPN	139.1 Mbps
L2TP VPN Throughput	• Unencrypted: 977.4 Mbps • Encrypted: 334.6 Mbps
PPTP VPN Throughput	• Unencrypted: 1064.1 Mbps • Encrypted: 206.8 Mbps
SSL VPN Throughput	131.6 Mbps
66 Byte Packet forwarding rate	1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate	81,279 pps / 81,275 pps

CÁC TÍNH NĂNG CƠ BẢN
Dạng kết nối WAN	• Static IP• Dynamic IP• PPPoE(supports MRU Configuration)• PPTP• L2TP
MAC Clone	Modify WAN/LAN MAC Address^†
DHCP	• DHCP Server• DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP
IPv6	StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

TÍNH NĂNG NÂNG CAO
ACL	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing• Policy Routing• RIP^§• OSPF^§
Kiếm soát băng tần	IP-based Bandwidth Control
Load Balance	• Intelligent Load Balance• Application Optimized Routing• Link Backup (Timing, Failover)• Online Detection
NAT	• One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering^§• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP
Session Limit	IP-based Session Limit

VPN
SSL VPN	50 Tunnels
IPsec VPN	• 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server• PPTP VPN Client (10)^‡• 50 Tunnels• PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10)^‡• 50 Tunnels• L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (5)^‡• 55 OpenVPN Tunnels• “Certificate + Account” Mode • Full Mode

AUTHENTICATION
Web Authentication	• No Authentication• Simple Password• Hotspot(Local User /Voucher^/ SMS^/Radius^)• External Radius Sever• External Portal Sever^*• LDAP^§

QUẢN LÝ
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Dịch vụ	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)^§ • NTP Synchronize^§• Port Mirroring• CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration

KHÁC
Chứng chỉ	CE, FCC, RoHS
Sản phẩm bao gồm	• ER7206(TL-ER7206)• Power Cord• Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
Môi trường	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing
