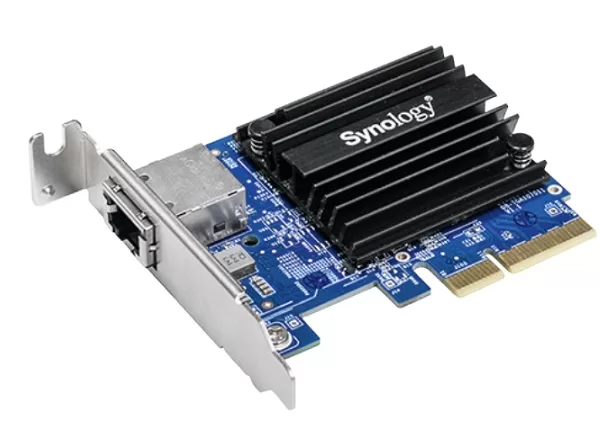

Ethernet Adapter SYNOLOGY E10G18-T1
Liên hệ báo giáEthernet Adapter SYNOLOGY E10G18-T1
– Equipped with an RJ-45 connector and supports IEEE 802.3an/bz (10GBASE-T/NBASE-T) and 802.3x, E10G18-T1 helps you smoothly migrate to a 10GbE networking environment with your existing infrastructure. Supporting backward compatibility and auto-negotiation between 10Gbps, 5Gbps, 2.5Gbps, 1Gbps and 100Mbps data rate, E10G18-T1 is an economic solution to overcome the data transmission bottleneck for small businesses and home users.
Thông số kỹ thuật và tính năng
| General | |
| Standards | IEEE 802.3an 10Gbps Ethernet IEEE 802.3bz 2.5Gbps/ 5Gbps Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control |
| Data transfer rates | 10 Gbps per port |
| Network operation mode | Full duplex |
| Supported OS | Synology DiskStation Manager (DSM) 6.1.7 and onward |
| Supported models | 19 series: RS1619xs+, RS1219+, DS2419+, DS1819+ 18 series: FS1018, RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, DS3018xs, DS1618+ 17 series: FS3017, FS2017, RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, DS3617xs, DS1817+, DS1517+ 16 series: RS18016xs+ 15 series: RC18015xs+, DS3615xs 14 series: RS3614xs+, RS3614RPxs, RS3614xs 13 series: RS10613xs+, RS3413xs+ 12 series: RS3412RPxs, RS3412xs, DS3612xs 11 series: RS3411RPxs, RS3411xs, DS3611xs |
| Physical | |
| PCI Express interface | PCIe 3.0 and 2.0 compatible 8-lane or 4-lane auto-negotiation |
| Bracket height | Low Profile and Full Height |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | 20˚C to 60˚C (-5˚F to 140˚F) |
| Relative humidity | 5% to 95% RH |
| Certification | FCC, CE, BSMI |
– Bảo hành: 60 tháng.
