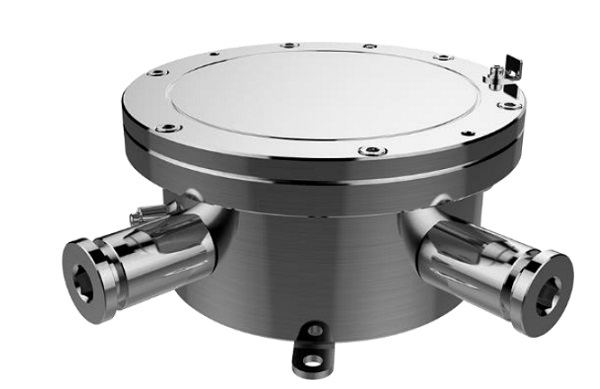

Explosion-Proof Terminal Box HIKVISION DS-2780ZJ-X/316L(OS)

Lưu ý: Giá sản phẩm chưa bao gồm phí vận chuyển, thuế và các chi phí khác (nếu có)

Mô tả

– Stainless steel 304 and stainless steel 316L optional.

– Four cable outlets.

– ATEX and IECEx certified explosion-proof performance.

– Ingress protection, IP68.

Thông số kỹ thuật

Material	Stainless steel 316L
Dimension	272 × 272 × 96.8 mm
Weight	Approx. 6.4kg
Cable Outlet	4 cable outlets, M25 × 1.5
Operating Conditions	-40°C to +60°C (-40°F to 140°F), 95%RH or less (non-condensing)
Hazardous Area	Zone 1, Zone 2, Zone 21, and Zone 22
Ingress protection	IP68
Interface	110 to 240 VAC/24 VAC/8 to 36 VDC, CVBS, RS-485, 1 audio input, 1 audio output, 2 alarm inputs and 2 alarm outputs, RJ45 Ethernet interface (PoE 802.3 at/af supported)
Power Adapter Preinstalled	No
Wire Gauge	No. 22 to No. 12 AWG, max. 3.294 mm²
Applicable Device	Device that uses 110 to 240 VAC/24 VAC/8 to 36 VDC/PoE (802.3 at/af) as power supply
