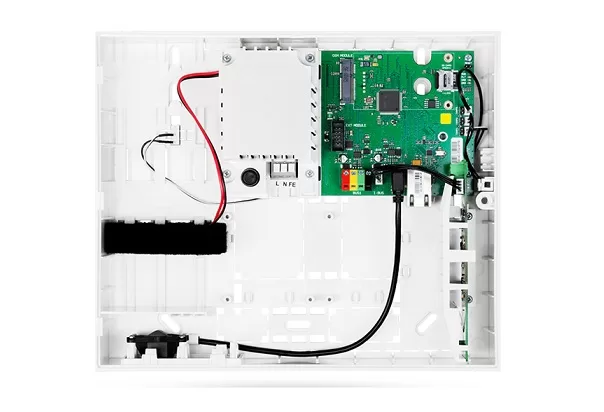

GSM Control Panel With LAN And Radio Module JABLOTRON JA-103KR
– The JA-103KR control panel offers: 50 wireless or bus devices, 50 users, 8 sections, 32 programmable PG outputs, 20 mutually independent calendar events, 8 user SMS and voice reports, 5 ARCs can be set, 5 selectable protocols for an ARC.
– The control panel has: 1 terminal board for bus connection, 1 connector for a built-in radio module (JA-111R), 1 connector for a GSM/GPRS communicator (JA-192Y).
– The control panel also offers functions such as: Maintenance, Day/night mode, Short departure response, Automatic setting, Advanced calendar features.
Technical specifications
| Control panel power supply | ~ 110 – 230 V/50 – 60 Hz, max. 0.28 A with fuse F1.6 A/250 V, Protection class II |
| Back-up battery | 12 V; 2.6 Ah (lead gel) |
| Maximum battery charging time | 48 h |
| BUS voltage (red – black) | 12.0 to 13.8 V |
| Maximum continuous current consumption from the control panel | 1000 mA |
| Max. continuous current consumption for back-up 12 hours | – Without GSM communicator LAN – OFF: 115 mA LAN – ON: 88 mA – With GSM communicator LAN – OFF: 80 mA LAN – ON: 53 mA |
| Max. continuous current consumption for back-up 24 hours | – Without GSM communicator LAN – OFF: 21 mA – With GSM communicator LAN – OFF: 17 mA |
| Maximum number of devices | 50 |
| LAN communicator | Ethernet interface, 10/100BASE |
| Dimensions | 268 x 225 x 83 mm |
| Weight with/without AKU | 1844 g/970 g |
| Reaction to invalid code entry | Alarm after 10 wrong code entries |
| Event memory | Approx. 7 million latest events, including date and time |
| Power supply unit | Type A according to EN 50131-6 T 031 note: In case of a main power failure is the system backed up for 24 hours and at the same time is a failure report sent to the ARC |
| GSM communicator (2G) | 850 / 900 / 1800 / 1900 MHz |
| Classification | Security grade 2 according to EN 50131-1 |
| Operational environment | Environmental class II (indoor general) according to EN 50131-1 |
| Operational temperature range | -10 °C to +40 °C |
| Average operational humidity | 75 % RH, non-condensing |
| Complies with | EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, EN 50131-10, EN 50136-1, EN 50136-2, EN 50581 |
| Radio operating frequency (with the JA 11xR module) | 868.1 MHz |
| Radio emissions | ETSI EN 300 220-1,-2 (module R), ETSI EN 301 419-1, ETSI EN 301 511 (GSM) |
| EMC | EN 50130-4 ed. 2+A1, EN 55032 ed. 2, ETSI EN 301 489-7 |
| Safety conformity | EN 62368-1+A11 |
| Caller identification (CLIP) | ETSI EN 300 089 |
| Operational conditions | ERC REC 70-03 |
| Certification body | Trezor Test s.r.o. (no. 3025) |
– Bảo hành: 5 năm.
