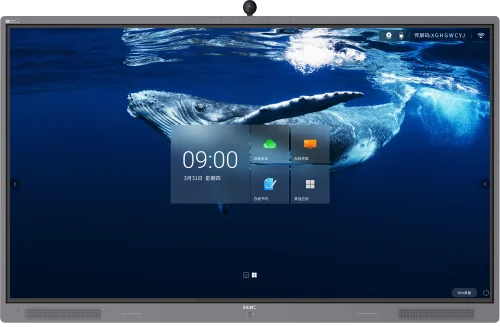

H3C 8K MagicHub S65I2C
Liên hệ báo giáProduct Model
H3C S65I2C
Display parameters
Size
65″
Backlight type
D-LED
Scanning frequency
60Hz
Screen resolution
7680 × 4320
Response time
11ms
Screen scale
16:9
Brightness
≥320nit
Viewing angle
≥178°
Colour gamut（NTSC）
85% NTSC（TYP）
Anti-blue light
Support
Glass
2mm thick, surface hardness 7h, single side spraying AG, transmittance ≥ 88%
Fitting mod
Full fit
System parameter
CPU
11th Gen Intel Core i5
RAM
16GB
ROM
256GB
Touch parameters
Number of touch points
20 points
Touch height
2.5mm
Minimum identifier
2mm（90% area in the center of the screen）
Writing accuracy
±1mm（90% area in…
Specification
|
Product Model |
H3C S65I2C |
||
|
Display parameters |
Size |
65″ |
|
|
Backlight type |
D-LED |
||
|
Scanning frequency |
60Hz |
||
|
Screen resolution |
7680 × 4320 |
||
|
Response time |
11ms |
||
|
Screen scale |
16:9 |
||
|
Brightness |
≥320nit |
||
|
Viewing angle |
≥178° |
||
|
Colour gamut（NTSC） |
85% NTSC（TYP） |
||
|
Anti-blue light |
Support |
||
|
Glass |
2mm thick, surface hardness 7h, single side spraying AG, transmittance ≥ 88% |
||
|
Fitting mod |
Full fit |
||
|
System parameter |
CPU |
11th Gen Intel Core i5 |
|
|
RAM |
16GB |
||
|
ROM |
256GB |
||
|
Touch parameters |
Number of touch points |
20 points |
|
|
Touch height |
2.5mm |
||
|
Minimum identifier |
2mm（90% area in the center of the screen） |
||
|
Writing accuracy |
±1mm（90% area in the center of the screen） |
||
|
Camera Parameters |
4K Camera |
Resolution |
4K |
|
Maximum vision |
diagonal≥138° |
||
|
Automatic adjustment |
Diagonal backlight compensation, auto exposure, auto framing, wide dynamic / HDR |
||
|
Zoom |
≥4X digital zoom |
||
|
Wi-Fi parameters |
Spatial flow |
2.4GHz 2×2 MIMO，5GHz 2×2 MIMO |
|
|
Working frequency |
2.4GHz和5GHz |
||
|
Wi-Fi standard |
IEEE 802.11a/b/g/n/ac/ax |
||
