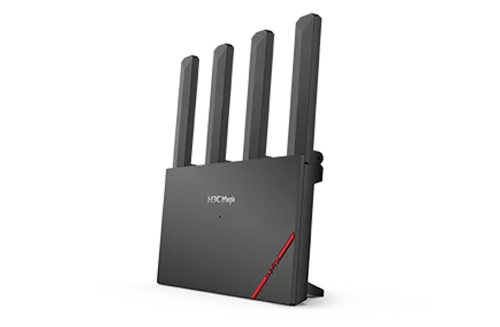

H3C Magic NX30
Liên hệ báo giáItem
Description
Hardware
Fixed port
Four 10/100/1000Base-T Ethernet ports
Independent reset key, function keys (Mesh, wireless optimization)
Wireless
4 external 5dBi high gain omnidirectional antennas
CPU
Dual-core 1.0 GHz
Memory
256 MB
Indicator
Front LED: system status indicator
Dimensions (W×D×H)
210mm x222mm x 64mm
Power supply
12V⎓1A
Cooling…
Product Specifications
|
Item |
Description |
|
Hardware |
|
|
Fixed port |
Four 10/100/1000Base-T Ethernet ports |
|
|
Independent reset key, function keys (Mesh, wireless optimization) |
|
Wireless |
4 external 5dBi high gain omnidirectional antennas |
|
CPU |
Dual-core 1.0 GHz |
|
Memory |
256 MB |
|
Indicator |
Front LED: system status indicator |
|
Dimensions (W×D×H) |
210mm x222mm x 64mm |
|
Power supply |
12V⎓1A |
|
Cooling method |
Natural cooling |
|
Certification |
CE WEEE RoHS |
|
Wireless |
|
|
Wireless protocol |
2.4 GHz: 802.11ax/n/g/b 5 GHz: 802.11ax/ac/n/a |
|
Spatial flow |
2.4 GHz 2×2 MIMO 5 GHz 2×2 MIMO |
|
Wireless bandwidth |
2.4G HT20/HT40 5G HT20/HT40/HT80/HT160 |
|
Wireless rate |
Dual-frequency concurrency 2,976 Mbps 2.4 GHz: 574 Mbps & 5 GHz: 2,402 Mbps |
|
Wireless roaming |
Support of IEEE 802.11k/v |
|
MU-MIMO |
Upstream and downstream MU-MIMO |
|
Software |
|
|
Internet connection |
Routing mode: DHCP/PPPoE/Static IP Bridge mode: wired relay/wireless relay |
|
EasyMesh |
Support |
|
IPv6 |
Support |
|
Security features |
WPA3 encryption Anti-Wi-Fi squatting/anti-attack Firewall, DMZ, DoS attacks |
|
Network management |
Guest Wi-Fi, access allow list/deny list, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch |
|
Features |
Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP, DynDNS), VPN(PPTP Client,L2TP Client) |
|
Management method |
Support for H3C Magic APP (iOS, Android), Web |
|
Fault diagnosis |
Link detection Internet diagnosis |
|
Operating environment |
|
|
Operating temperature |
0°C–40°C |
|
Storage humidity |
10%–90%, RH non-condensing |
|
|
|
