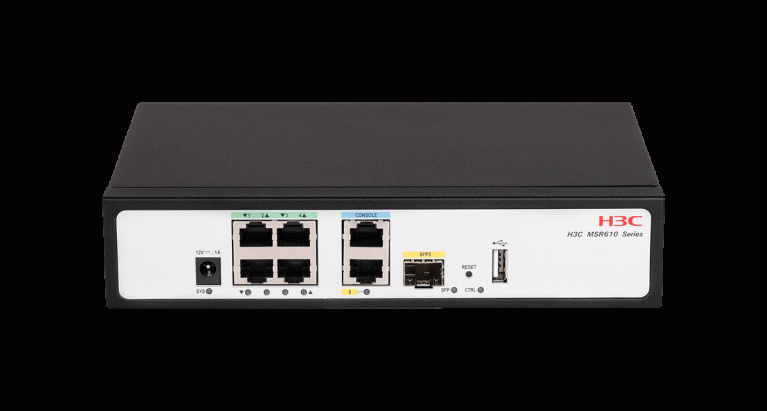

H3C MSR610 Router
Liên hệ báo giáForwarding Performance In Service (IMIX)
200 Mbps
CPU
800MHz
Memory
1 GB
Internal Flash
256 MB
External Flash
NA
USB ports
1
Console ports
1
WAN ports
1 × GE copper port
1 × SFP port
LAN port
4 × GE ports (can be configured as WAN interfaces)
Max power consumption
24W
Power voltage(adapter)
External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz
Power voltage(device)
DC 12V 2A
Dimensions (W × D…
|
Forwarding Performance In Service (IMIX) |
200 Mbps |
|
CPU |
800MHz |
|
Memory |
1 GB |
|
Internal Flash |
256 MB |
|
External Flash |
NA |
|
USB ports |
1 |
|
Console ports |
1 |
|
WAN ports |
1 × GE copper port 1 × SFP port |
|
LAN port |
4 × GE ports (can be configured as WAN interfaces) |
|
Max power consumption |
24W |
|
Power voltage(adapter) |
External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz |
|
Power voltage(device) |
DC 12V 2A |
|
Dimensions (W × D × H) |
210 x 140 x 44 mm |
|
Operating temperature |
0°C to 40°C (32°F to 104°F) |
|
Operating humidity |
5% RH to 95% RH, non-condensing |
|
EMC |
FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 ETSI EN 300 386 EN 301 489-1 EN 301 489-17 |
|
Safety |
UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J GB 4943 |
