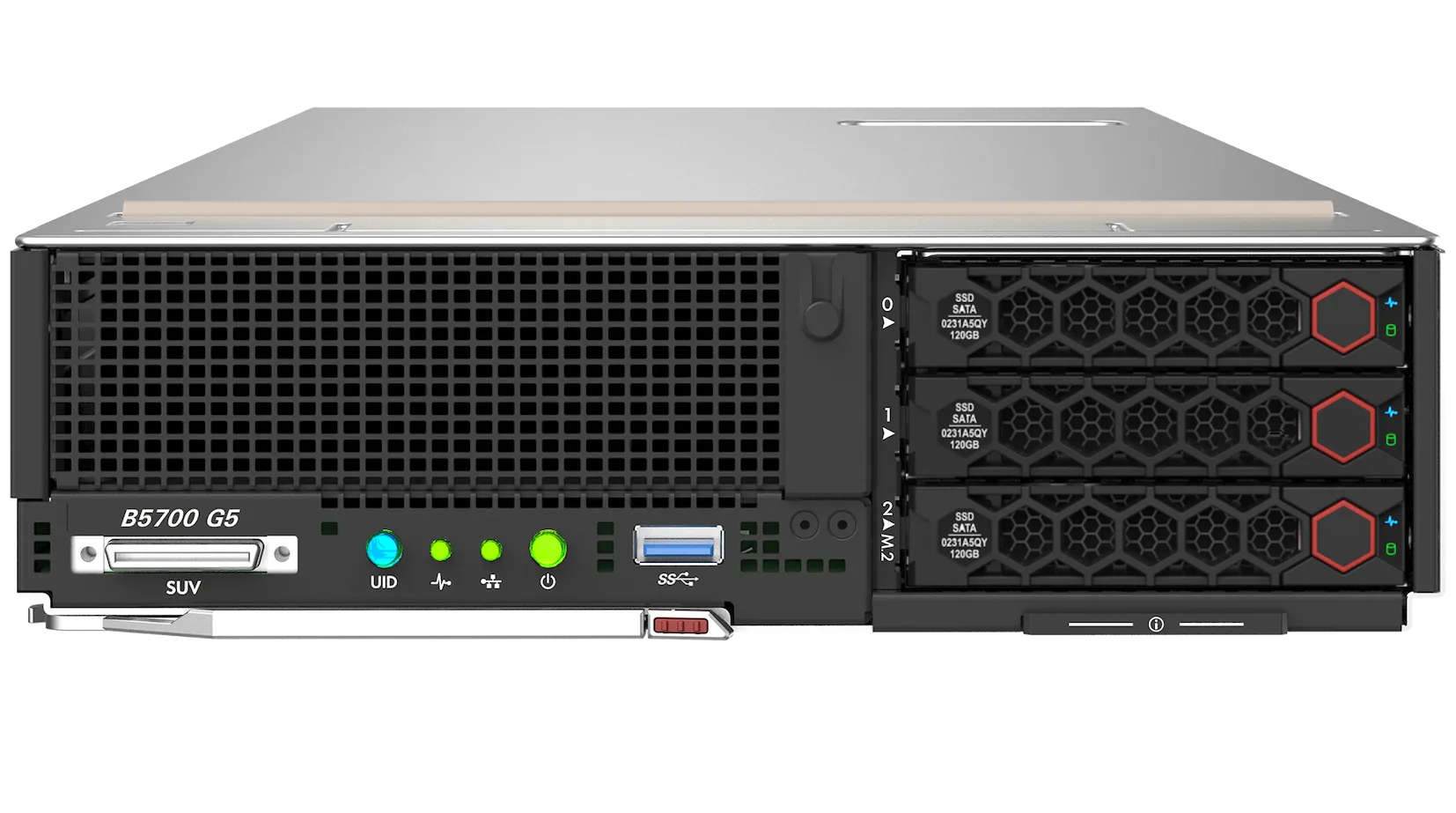

H3C UniServer B5700 G5 Server
Liên hệ báo giáCPU
2 3rd Generation Intel®Xeon® Ice Lake Scalable series
235W power consumption
Chipset
Intel® C621A
Memory
32 DDR4 RDIMM Slots, 3200 MT/s Data Rate
16 Intel ® Optane™ DC Persistent Memory Module PMem 200 series
Raid Controller
Embedded RAID controller (SATA RAID 0,1,5)
Mezzanine RAID HBA controller (SATA/SAS RAID 0,1)
Mezzanine RAID storage controllers (SATA/SAS 0,1,10,5,6,50,60)
FBWC
4 GB Cache, support Supercapacitor protection*
Storage
Front 3SFF…
|
CPU |
2 3rd Generation Intel®Xeon® Ice Lake Scalable series 235W power consumption |
|
Chipset |
Intel® C621A |
|
Memory |
32 DDR4 RDIMM Slots, 3200 MT/s Data Rate 16 Intel ® Optane™ DC Persistent Memory Module PMem 200 series |
|
Raid Controller |
Embedded RAID controller (SATA RAID 0,1,5) Mezzanine RAID HBA controller (SATA/SAS RAID 0,1) Mezzanine RAID storage controllers (SATA/SAS 0,1,10,5,6,50,60) |
|
FBWC |
4 GB Cache, support Supercapacitor protection* |
|
Storage |
Front 3SFF bays* Front SAS/SATA HDD/SSD/NMVe Drives, maximum 2 NVMe Drives Front 2 SATA M.2 SSDs |
|
Network |
2 Onboard 1 Gbps Port Internal Mezzanine Slots for 4x10GE, 2x10GE, 2x25GE, 2x16GE, 2 x32GE NIC Front PCIe Standard Slots for Ethernet adapter |
|
Expansion Slots |
5 PCIe 4.0 Slots 1 Standard Slot and 3 Mezzanine Slots and 1 Raid-dedicated Slots |
|
Ports |
1 Front USB 3.0 Port,1 SUV Port (2 USB2.0, Serial Port, VGA Port) |
|
GPU |
1 LP GPU Modules |
|
Optical Drive |
External Optical Disk Drive, Optional |
|
Management |
Chassis integrated |
|
Security |
TPM2.0 |
|
Power supply |
Chassis integrated |
|
Operating temperature |
5°C to 45°C (41°F to 113°F) * |
|
Dimensions |
Single Height and Half Width |
