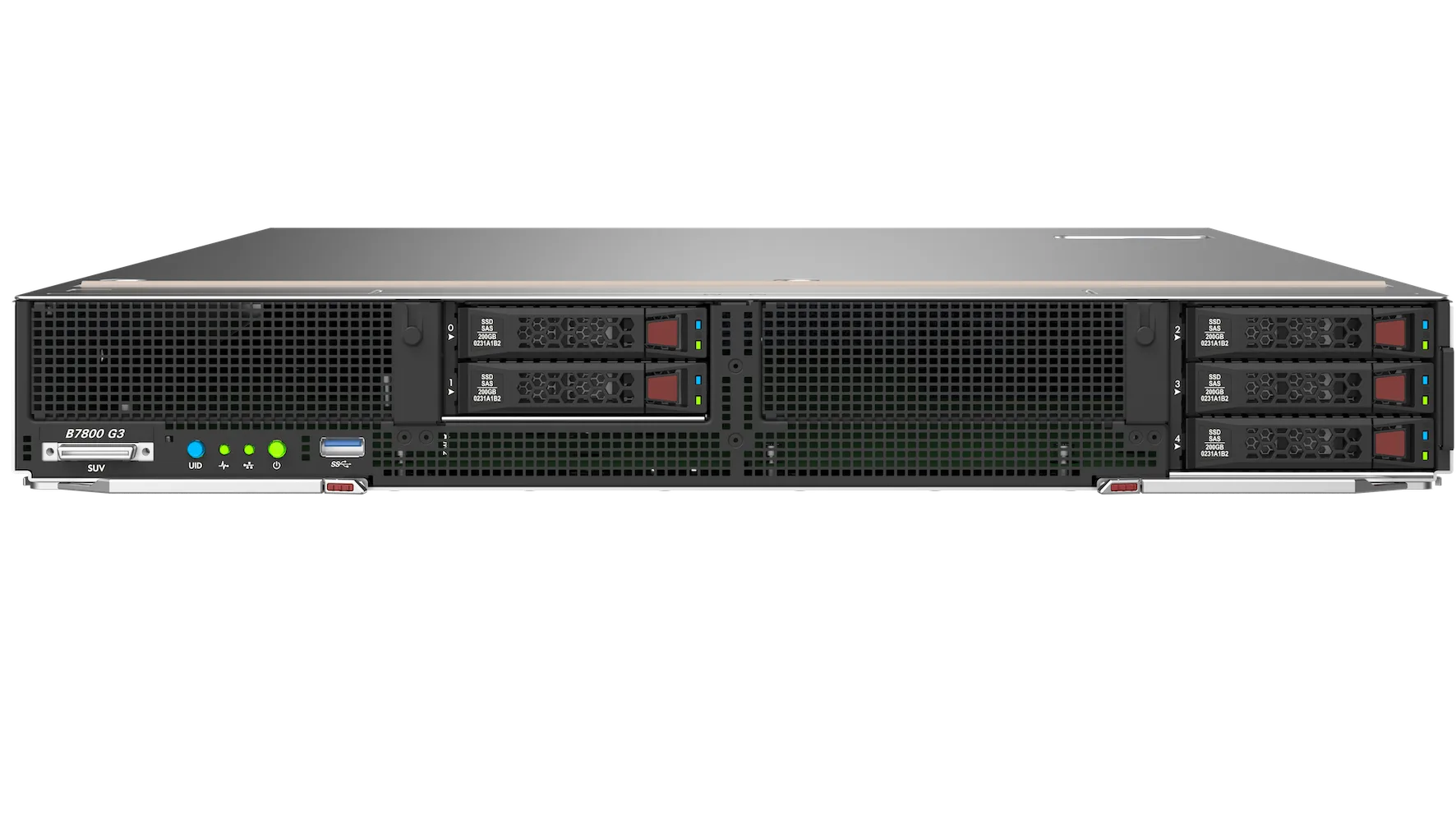

H3C UniServer B7800 G3 Server
Liên hệ báo giáCPU
4 2nd Generation Intel®Xeon® Cascade Lake Scalable series
Chipset
Intel® C621
Memory
48 DDR4 RDIMM Slots, 2933 MT/s Data Rate
24 Intel ® Optane™ DC Persistent Memory Module series
Raid Controller
Embedded RAID controller (SATA RAID 0,1,5)
Mezzanine RAID HBA controller (SATA/SAS RAID 0,1)
Mezzanine RAID storage controllers (SATA/SAS 0,1,10,5,6,50,60)
FBWC
4 GB Cache, support Supercapacitor protection*
Storage
5 Front SFF Drive Slots
2 Internal…
|
CPU |
4 2nd Generation Intel®Xeon® Cascade Lake Scalable series |
|
Chipset |
Intel® C621 |
|
Memory |
48 DDR4 RDIMM Slots, 2933 MT/s Data Rate 24 Intel ® Optane™ DC Persistent Memory Module series |
|
Raid Controller |
Embedded RAID controller (SATA RAID 0,1,5) Mezzanine RAID HBA controller (SATA/SAS RAID 0,1) Mezzanine RAID storage controllers (SATA/SAS 0,1,10,5,6,50,60) |
|
FBWC |
4 GB Cache, support Supercapacitor protection* |
|
Storage |
5 Front SFF Drive Slots 2 Internal SD cards 2 Front M.2 Drives and 2 Internal M.2 Drives 4 Front NVMe drives |
|
Network |
2 Onboard 1 Gbps Port Internal Mezzanine Slots for 4x10GE, 2x10GE, 2x25GE, 2x16GE, 2 x32GE NIC |
|
Expansion Slots |
9 PCIe 3.0 Slots 2 Standard Slots, 3 Mezzanine Slots, 1 Raid-dedicated Slots Front PCIe Standard Slots for Ethernet adapter |
|
Ports |
1 Front and 1 Internal USB 3.0 Port,1 SUV Port (2 USB2.0, Serial Port, VGA Port) |
|
Optical Drive |
External Optical Disk Drive, Optional |
|
GPU |
2 LP GPU Modules |
|
Management |
Chassis integrated |
|
Security |
TPM2.0 |
|
Power supply |
Chassis integrated |
|
Operating temperature |
5°C to 45°C (41°F to 113°F) * |
|
Dimensions |
Single Height and Full Width |
