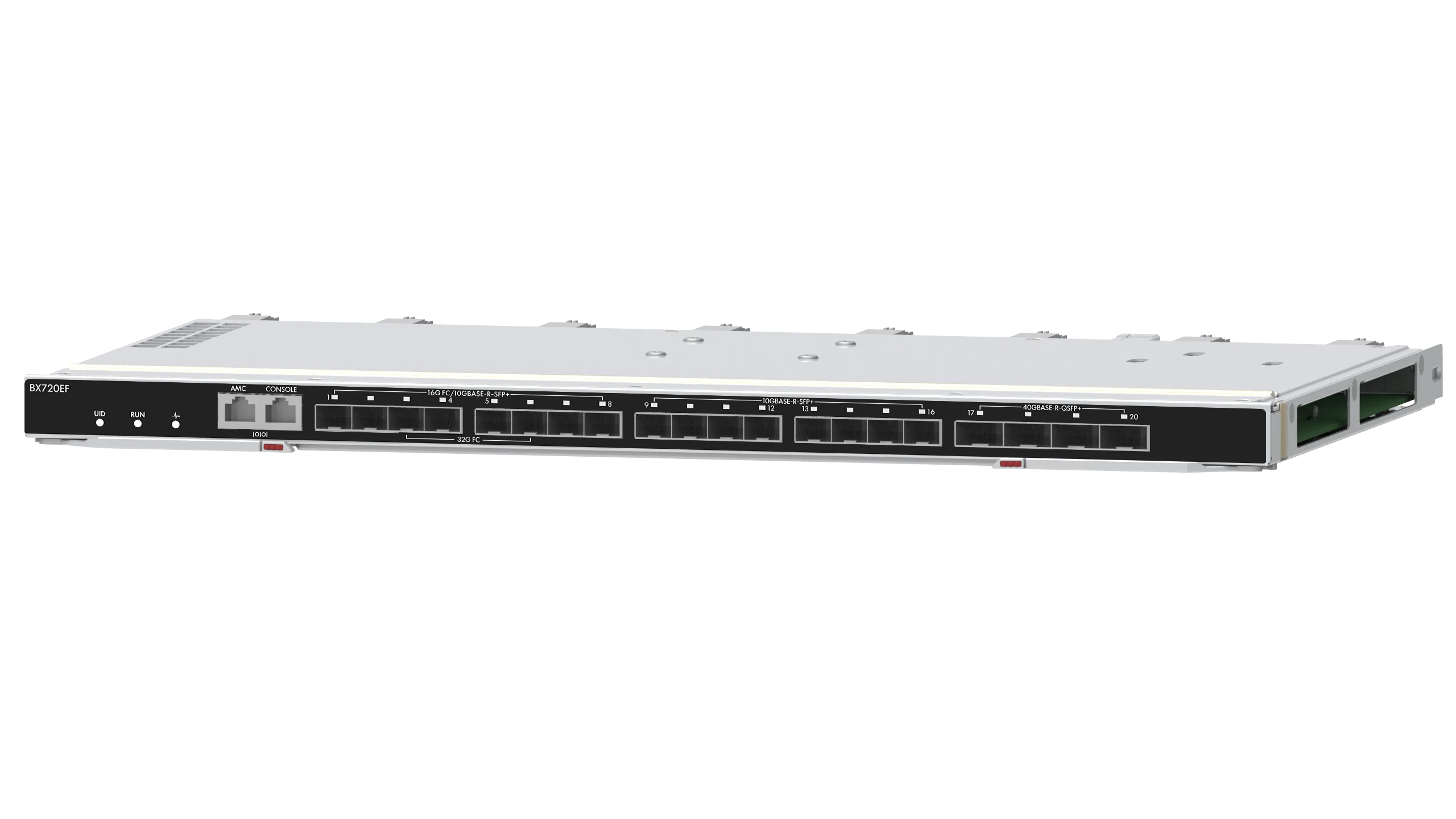

H3C UniServer BX720EF 10G Converged Network Switch Module
Liên hệ báo giáExternal Port
1 AMC Serial Port
1 Console Port
8 Converged Ports, provides he functionality of both
(8 16G FC Ports or 8 1/10GE Ports)
8 1/10GE Ports
4 40GE Ports
Internal Port
38 10GE Ports
Weight
3.6kg
Power
110W
Operating temperature
5°C to 45°C (41°F to 113°F) *
Dimensions (H × W × D)
27mm x 491.6mm x 296.5mm (1.06 x 19.35 x 11.67 in)
|
External Port |
1 AMC Serial Port (8 16G FC Ports or 8 1/10GE Ports) 8 1/10GE Ports |
|
Internal Port |
38 10GE Ports |
|
Weight |
3.6kg |
|
Power |
110W |
|
Operating temperature |
5°C to 45°C (41°F to 113°F) * |
|
Dimensions (H × W × D) |
27mm x 491.6mm x 296.5mm (1.06 x 19.35 x 11.67 in) |
