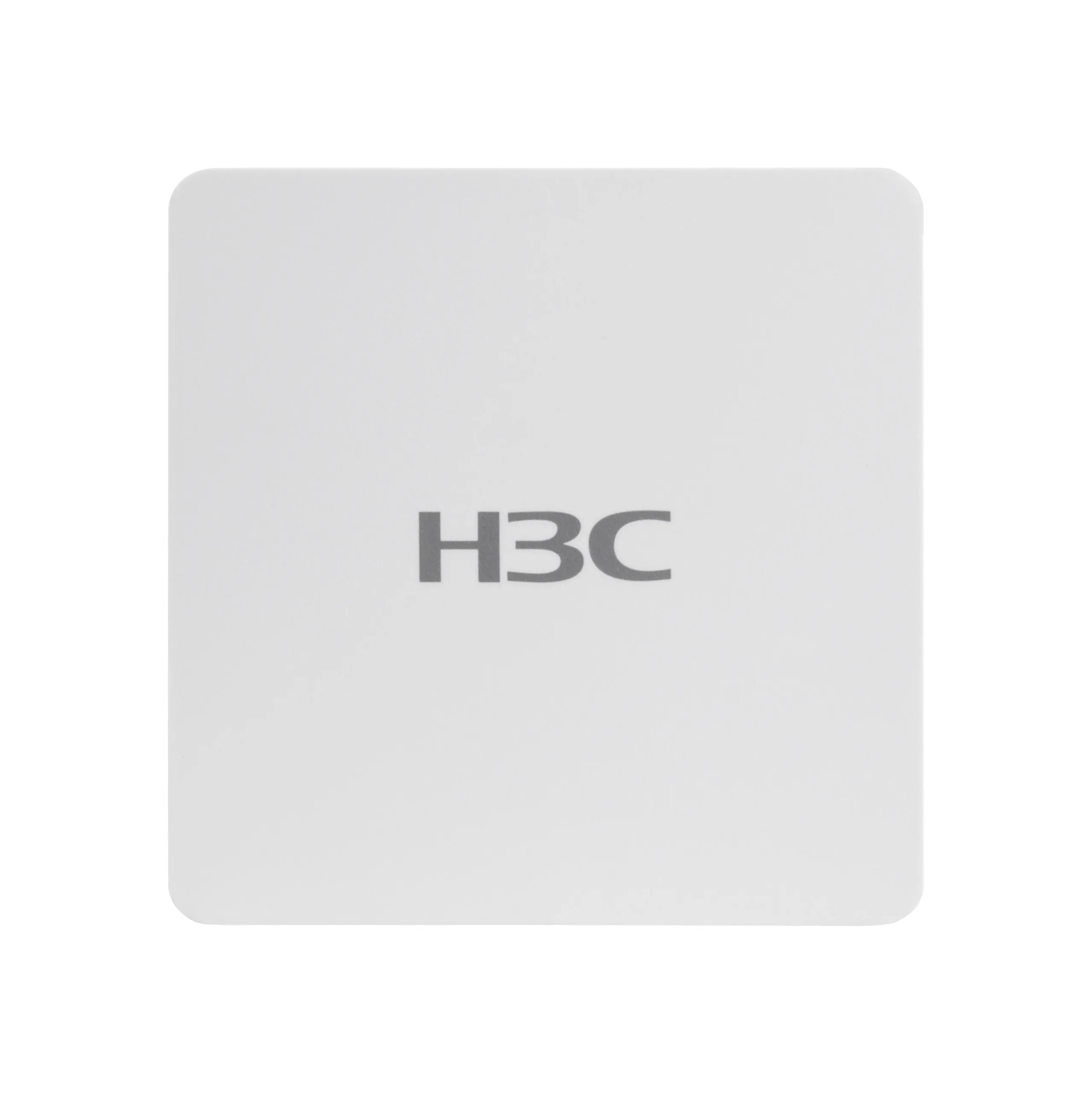

H3C WA6022H New Generation Wall-Plate Access Point
Liên hệ báo giáDimensions (excluding antenna connectors and mounting accessories)
45×86×86 mm (H x W x D)
Fixed port
UpLink：10/100/1000M×1，RJ-45
LAN：10/100/1000M×1，RJ-45
PoE In
802.3af
Local power supply
54V DC
Console port
None
Built-in antenna
Internal Omni-directional antenna
3dBi antenna gain @2.4GHz
4dBi antenna gain @5GHz
Working frequencies
802.11ax/ac/n/a: 5.725 GHz – 5.850 GHz; 5.47 GHz – 5.725 GHz; 5.15 GHz – 5.35 GHz
802.11ax/b/g/n: 2.4 GHz – 2.483 GHz
Modulation technology
OFDM:…
|
Dimensions (excluding antenna connectors and mounting accessories) |
45×86×86 mm (H x W x D) |
|
Fixed port |
UpLink：10/100/1000M×1，RJ-45 |
|
PoE In |
802.3af |
|
Local power supply |
54V DC |
|
Console port |
None |
|
Built-in antenna |
Internal Omni-directional antenna 3dBi antenna gain @2.4GHz 4dBi antenna gain @5GHz |
|
Working frequencies |
802.11ax/ac/n/a: 5.725 GHz – 5.850 GHz; 5.47 GHz – 5.725 GHz; 5.15 GHz – 5.35 GHz 802.11ax/b/g/n: 2.4 GHz – 2.483 GHz |
|
Modulation technology |
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps MIMO-OFDM(11n): MCS 0-15 MIMO-OFDM(11ac): MCS 0-9 MIMO-OFDM(11ax): MCS 0-11 |
|
Modulation mode |
11b: DSS:CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM 11ac/ac wave2: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
|
Transmit power (combined power) |
20 dBm (Varies depending on local laws and regulations) |
|
Adjustable power granularity |
1 dBm |
|
Power consumption |
≤15W (include USB) |
|
Reset/restoration to factory default |
Supported |
|
Operating temperature/storage temperature |
-10ºC to +55ºC/-40ºC to +70ºC |
|
Operating humidity/storage humidity |
5% – 95% (non-condensing) |
|
Safety compliance |
GB 4943, EN/IEC/UL 60950-1, EN/IEC/UL 62368-1 |
|
EMC |
EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 60601-1-2, EN 301 489-1, EN 301 489-17 |
|
Environment |
GB/T 2423, GB/T 13543, GB 4208 |
|
Radio frequency certification |
FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC |
|
MTBF |
2230121H |
