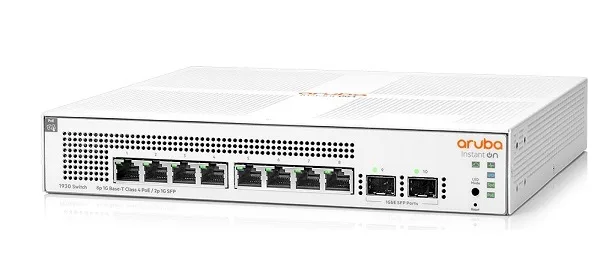

HP Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch JL681A

7.392.000 ₫

Lưu ý: Giá sản phẩm chưa bao gồm phí vận chuyển, thuế và các chi phí khác (nếu có)

Danh mục: HPe Thẻ: HP Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch JL681A Switch HP Thiết bị mạng

Mô tả

HP Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch JL681A

– Support 8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports; 2 SFP 1000Mbps ports.

– CPU: ARM Cortex-A9 @ 800MHz.

– Memory And Flash: 512 MB SDRAM; 256 MB flash.

– Packet buffer: 1.5MB.

– Dimensions (W x D x H): 25.4 x 15.95 x 4.39 cm (1U height)

– Weight: 1.16kg.

Specifications

Model	JL681A
General
I/O Ports and Slots	8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports
CPU	ARM Cortex-A9 @ 800 MHz
Memory And Flash	512 MB SDRAM 256 MB flash
Packet Buffer	1.5 MB
Safety	UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions	VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
Device Management	Aruba Instant On solution; Web browser; SNMP Manager
Performance
100Mb latency	100Mb latency: < 5.2 uSec Packet size: 64B
1000Mb latency	1000Mb latency: <3.0 uSec Packet size: 64B
Throughput	Throughput (Mpps): 14.88 Mpps Packet size: 64B
Switching capacity	20 Gbps
Routing table size (# of static entries)	32
MAC address table size (# of entries)	8,000
Reliability MTBF (years)	95
Physical Characteristics
Dimensions (W x D x H)	25.4 x 15.95 x 4.39 cm (1U height)
Weight	1.16 kg
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)
Operating relative humidity	15% to 95% @ 104°F (40°C)
Non-operating temperature	‑40°F to 158°F (‑40°C to 70°C)
Non-operating relative humidity	15% to 95% @ 140°F (60°C)
Altitude	Up to 10,000ft (3.048 Km)
Acoustic	Power: 0 dB (no fan)
Electrical Characteristics
Frequency	50-60 Hz
AC voltage	100 – 127 / 200 – 240 VAC
Current	0.8/1.6 A
Maximum power rating	150.2 W
Idle power	11.7 W
PoE power	124 W Class 4 PoE
Power supply	Internal power supply

– Hàng chính hãng HP.

– Bảo hành: 3 năm.
