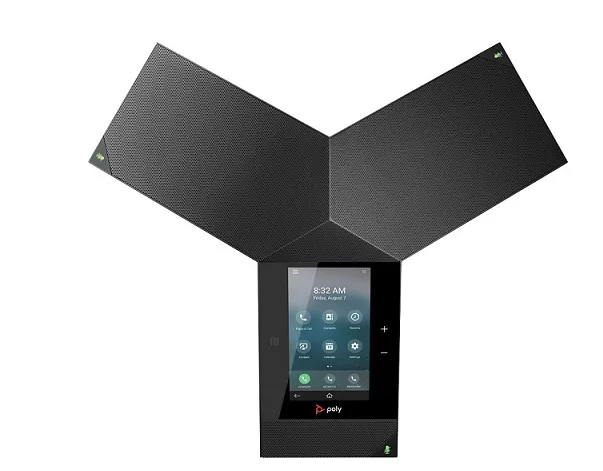

IP Conference Phone Poly Trio 8800 (2200-66070-019)
– IP Conference Phone Poly Trio 8800 with built-in Wi-Fi, Bluetooth and NFC. Power over Ethernet. Includes 7.6m/25ft Ethernet cable, 1.8m/6ft USB 2.0 cable and setup sheet.
– Poly’s legendary voice quality fills the room with HD Voice 22kHz audio and 6m/20 ft pickup.
– Enjoy versatile audio connectivity from your preferred mobile devices (USB, Bluetooth).
– Start a meeting in seconds with onetouch-join.
– Make decisions faster with rich video and content sharing options.
Specification
| USER INTERFACE FEATURES | – Gesture-based, multitouch-capable capacitive touch screen – 5-inch color LCD (720 x 1280 pixel), 9:16 aspect ratio – On-screen virtual keyboard – 1 USB 2.0 Type A-compliant port USB battery charging BC1.2 compliant (requires full Class 4 power input on LAN IN for operation) – 1x USB 2.0 Micro-B device port for use as USB audio device – Integrated Bluetooth 4.0 and NFC – 3 multicolored capacitive-touch mute indicators – Unicode UTF-8-character support – User interface localized in Arabic, Chinese, Danish, Dutch, English (Canada/US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish |
| AUDIO FEATURES | – 3 cardioid microphones – Loudspeaker + Frequency: 100-22,000 Hz + Volume: 92 dB at 0.5-m peak volume – 6 m/20 ft microphone pickup range – Supported codecs: + G.711 (A-law and μ-law) + G.719 + G.722, G722.1, G722.1C + G.729AB + Poly Siren 7, Siren 14 + iLBC (3.33Kbps and 15.2Kbps) + Opus (8Kbps – 24Kbps) + SILK – Poly Acoustic Clarity technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression-Type 1 compliant (IEEE 1329 full duplex) – Poly NoiseBlock – Voice activity detection – Comfort noise generation – DTMF tone generation (RFC 2833 and in-band) – Bluetooth device pairing for wideband speech and multimedia streaming (HFP/AD2P) – Low-delay audio packet transmission – Adaptive jitter buffers – Packet loss concealment |
| CALL HANDLING FEATURES | – Up to three lines (max. one Skype for Business and Microsoft Teams) – Shared call/bridged line appearance – Distinctive incoming call treatment/call waiting – Call timer and call waiting – Call transfer, hold, divert (forward), pickup – Called, calling, connected-party information – One-touch speed dial and meeting join – Local five-way audio conferencing – Daisy-chain up to four – Do-not-disturb function – Local configurable digit map/dial plan – Corporate directory access using LDAP – Visual conference management |
| NETWORK AND PROVISIONING | – Open SIP – Skype for Business certified1 – Microsoft Teams certified1 – Zoom certified – IETF SIP (RFC 3261 and companion RFCs) – Two-port gigabit Ethernet switch + 10/100/1000Base-TX across LAN and 2nd port + 2nd port supports IEEE 802.3af PSE – Wi-Fi network connectivity + 2.4–2.4835 GHz (802.11b, 802.11g, 802.11n HT-20) + 5.15-5.825 GHz (802.11a, 802.11n, HT-20, 802.11n HT-40) – Manual or dynamic host configuration protocol (DHCP) network setup – Time and date synchronization using SNTP – FTP/TFTP/HTTP/HTTPS server-based central provisioning – RealPresence Resource Manager (v. 10.1 or above) based provisioning – Poly Zero Touch Provisioning – Provisioning and call server redundancy support + RealPresence Resource Manager (v 10.1 or above) based provisioning + PDMS-E, PDMS-SP – QoS support + IEEE 802.1p/Q tagging (VLAN), layer 3 TOS, and DSCP + WMM (Wi-Fi multimedia) – VLAN – CDP, DHCP VLAN discovery – LLDP-MED for VLAN discovery |
| SECURITY | – FIPS 140-2 compliant cryptographic module – 802.1X authentication and EAPOL – Media encryption via SRTP – Transport layer security (TLS) v 1.2 – Encrypted configuration files – Digest authentication – Password login – Support for URL syntax with password for boot server address – HTTPS secure provisioning – Support for signed software executables – Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2) |
| POWER | – LAN IN: Built-in auto-sensing IEEE 802.3at. PoE Device (Class 4) (requires full Class 4 power input on LAN IN for operation). Backward compatibility with IEEE 802.3af – LAN OUT: Built-in auto-sensing IEEE 802.3af power sourcing equipment (requires full Class 4 power input on LAN IN for operation) |
| APPROVALS | – Japan MIC/VCCI Class B – FCC Part 15 (CFR 47) Class B – ICES-003 Class B – CISPR22 Class B – VCCI Class B – EN 301 489-1, EN 301 489-3, EN 301 489-17 – EN61000-3-2; EN61000-3-3 – NZ Telepermit – Australia A&C Tick – ROHS compliant |
| RADIO | – US + FCC Part 15.247 + FCC Part 15.407 + FCC Part 15.225 – Canada + RSS 247 Issue 1 – EU + ETSI EN 300 328 v1.9.1 + ETSI EN 301 893 v1.7.1 + ETSI EN 300 330 – Japan + Japan Item (19) + Japan Item (19)-3 + Japan Item (19)-3-2 – Australia + AS/NZ4268 |
| SAFETY | – UL 60950-1 – UL 62368-1 – CE Mark – CAN/CSA-C22.2 No. 60950-1-03 – CAN/CSA C22.2 No. 62368-1-14 – EN 60950-1 – EN 62368-1 – IEC 60950-1 – IEC 62368-1 – AS/NZS 60950-1 – AS/NZS 62368-1-17 |
| ENVIRONMENTAL CONDITIONS | – Operating temperature: 0 to 40°C (+32 to 104°F) – Relative humidity: 5% to 95% (non-condensing) – Storage temperature: -20 to +70°C (-4 to +160°F) |
| PHONE DIMENSIONS (L X W X H) | – 38.3 x 7.5 x 33.2cm |
| WEIGHT | 950g |
– Bảo hành: 12 tháng.
