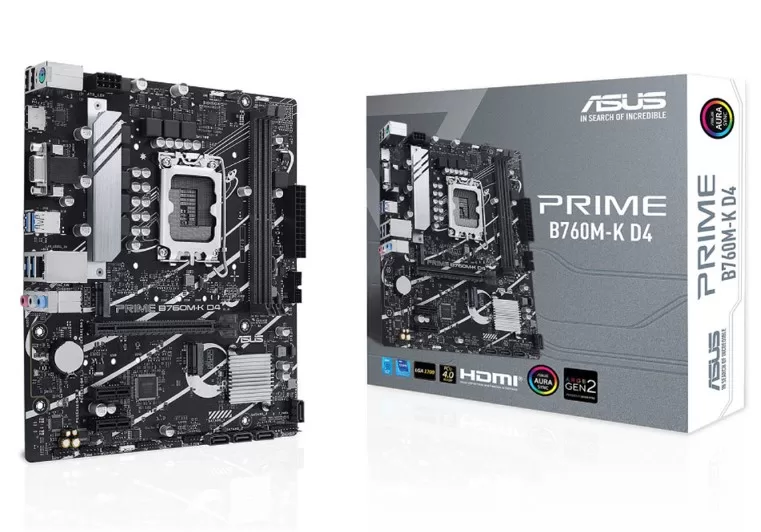

Mainboard ASUS PRIME B760M-K D4
Liên hệ báo giáXin vui lòng Zalo: 0984 104 265 để cập nhật giá mới nhất!
- Kích thước: 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
- Ram hỗ trợ: 2 x DIMM, Tối đa. 64GB, DDR4
5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Không ECC, Bộ nhớ không đệm*
Kiến trúc bộ nhớ Dual Channel
Hỗ trợ cấu hình bộ nhớ cực cao Intel® (XMP)
Loại bộ nhớ được hỗ trợ, tốc độ dữ liệu (tốc độ), và số lượng module DRAM phụ thuộc vào CPU và cấu hình bộ nhớ, để biết thêm thông tin, vui lòng tham khảo danh sách hỗ trợ CPU/Bộ nhớ trong tab Hỗ trợ của trang thông tin sản phẩm hoặc truy cập https://www.asus.com/support/. - Kiểu Sockets Supported: Intel ® Socket LGA1700 dành cho Bộ xử lý Intel ® Core ™ thế hệ thứ 13 & Bộ xử lý Intel ® Core ™, Pentium ® Gold và Celeron ® thế hệ thứ 12
Hỗ trợ Công nghệ Intel ® Turbo Boost 2.0 và Công nghệ Intel ® Turbo Boost Max 3.0 - Chipset: Chipset Intel® B760
- Thông số chung: BIOS 128 Mb Flash ROM, UEFI AMI BIOS
- Ổ Cứng: Tổng cộng hỗ trợ 2 khe cắm M.2 và 4 cổng SATA 6Gb/s*
Bộ vi xử lý Intel® thế hệ thứ 13 và 12.
Khe M.2_1 (Key M), loại 2242/2260/2280 (hỗ trợ PCIe 4.0 x4 chế độ)
Chipset Intel® B760
Khe M.2_2 (Key M), loại 2242/2260/2280 (hỗ trợ PCIe 4.0 x4 chế độ)
4 cổng SATA 6Gb/s
* Công nghệ Intel® Rapid Storage hỗ trợ SATA RAID 0/1/5/10. - MainBoard: PRIME B760M-K D4
Mô tả
BẢNG MẠCH CHÍNH CỦA MÁY VI TÍNH HIỆU ASUS PRIME B760M -K D4
ASUS Prime B760M-K D4, bo mạch chủ Intel® B760 LGA 1700 mATX với PCIe 4.0, hai khe cắm PCIe 4.0 M.2, DDR4, Ethernet Realtek 2.5Gb, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 1 trên bo, Aura Sync
- Socket Intel® LGA 1700: Sẵn sàng cho bộ vi xử lý Intel® thế hệ 13 và 12
- Kết nối cực nhanh: PCIe 4.0, hai khe M.2 PCIe 4.0, Ethernet Realtek 2.5Gb và USB 3.2 Gen 1 trên bo
- Tản nhiệt toàn diện: Tản nhiệt VRM, tản nhiệt PCH, cổng cắm quạt hybrid và Fan Xpert
- Đèn RGB Aura Sync: Đầu cắm RGB Addressable Gen 2 trên bo mạch và đầu cắm Aura RGB cho dải đèn LED RGB, dễ dàng đồng bộ hóa với linh kiện phần cứng hỗ trợ Aura Sync
Các bo mạch chủ dòng ASUS Prime được thiết kế bởi các kĩ sư chuyên nghiệp nhằm giải phóng toàn bộ tiềm năng sức mạnh của Bộ vi xử lý Intel® Core™ thế hệ 13. Tự hào với thiết kế truyền tải điện năng mạnh mẽ, giải pháp tản nhiệt toàn diện và các tùy chọn điều chỉnh thông minh, PRIME B760M-K D4 cung cấp cho người dùng và các kĩ sư lắp ráp PC DIY một loạt các tối ưu hóa hiệu năng thông qua các firmware tính năng và phần mềm trực quan.
Thông số sản phẩm
Kích thước | 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
Ram hỗ trợ | 2 x DIMM, Tối đa. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Không ECC, Bộ nhớ không đệm* Kiến trúc bộ nhớ Dual Channel Hỗ trợ cấu hình bộ nhớ cực cao Intel® (XMP) Loại bộ nhớ được hỗ trợ, tốc độ dữ liệu (tốc độ), và số lượng module DRAM phụ thuộc vào CPU và cấu hình bộ nhớ, để biết thêm thông tin, vui lòng tham khảo danh sách hỗ trợ CPU/Bộ nhớ trong tab Hỗ trợ của trang thông tin sản phẩm hoặc truy cập https://www.asus.com/support/. |
Kiểu Sockets Supported | Intel ® Socket LGA1700 dành cho Bộ xử lý Intel ® Core ™ thế hệ thứ 13 & Bộ xử lý Intel ® Core ™, Pentium ® Gold và Celeron ® thế hệ thứ 12 Hỗ trợ Công nghệ Intel ® Turbo Boost 2.0 và Công nghệ Intel ® Turbo Boost Max 3.0 |
Chipset | Chipset Intel® B760 |
khe cắm mở rộng | Bộ vi xử lý Intel® thế hệ thứ 13 và 12. 1 x khe cắm PCIe 4.0 x16 Chipset Intel® B760 2 x khe cắm PCIe 4.0 x1 Lưu ý: Để đảm bảo tính tương thích của thiết bị được cài đặt, vui lòng tham khảo https://www.asus.com/support/ để biết danh sách các thiết bị ngoại vi được hỗ trợ. |
LAN – WiF | 1 x Realtek 2.5Gb Ethernet |
Âm thanh | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Hỗ trợ: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Hỗ trợ playback lên đến 24-Bit/192 kHz Các tính năng âm thanh – Chống nhiễu âm thanh – Tụ âm thanh cao cấp – Lớp PCB âm thanh riêng biệt * Một chassis có mô-đun âm thanh HD trong bảng điều khiển trước là cần thiết để hỗ trợ đầu ra âm thanh Surround Sound 7.1. |
Operating System Support | Windows® 11, Windows® 10 64-bit |
Cổng I / O phía sau | 4 x cổng USB 3.2 Gen 1 (4 cổng Type-A) 2 x cổng USB 2.0 (2 x Type-A) 1 x cổng VGA 1 x cổng HDMI® 1 x cổng Realtek 2.5Gb Ethernet 3 x jack âm thanh 1 x cổng PS/2 Keyboard/Mouse kết hợp |
Cổng I/O ở trong | Liên quan đến quạt và làm mát 1 x đầu cắm quạt CPU 4 chân 1 x đầu cắm quạt chassis 4 chân Liên quan đến nguồn 1 x đầu cắm nguồn chính 24 chân 1 x đầu cắm nguồn +12V 8 chân Liên quan đến lưu trữ 2 x khe cắm M.2 (Key M) 4 x cổng SATA 6Gb/s USB 1 x USB 3.2 Gen 1 header hỗ trợ thêm 2 cổng USB 3.2 Gen 1 2 x USB 2.0 header hỗ trợ thêm 3 cổng USB 2.0 Phụ kiện khác 2 x đầu cắm Addressable Gen 2 1 x đầu cắm Aura RGB 1 x đầu cắm Clear CMOS 1 x đầu cắm cổng COM 1 x đầu cắm Front Panel Audio (AAFP) 1 x đầu cắm S / PDIF Out 1 x đầu cắm loa 1 x đầu cắm SPI TPM (14-1 chân) 1 x đầu cắm Bảng điều khiển hệ thống 10-1 chân |
Chuẩn thiết kế ATX | mATX Form Factor |
Đồ họa | 1 cổng VGA 1 cổng HDMI® ** Thông số đồ họa có thể thay đổi giữa các loại CPU. Vui lòng tham khảo www.intel.com để biết thông tin cập nhật. ** Hỗ trợ độ phân giải 4K@60Hz với cổng HDMI® 2.1. |
Thông số chung | BIOS 128 Mb Flash ROM, UEFI AMI BIOS |
Ổ Cứng | Tổng cộng hỗ trợ 2 khe cắm M.2 và 4 cổng SATA 6Gb/s* Bộ vi xử lý Intel® thế hệ thứ 13 và 12. Khe M.2_1 (Key M), loại 2242/2260/2280 (hỗ trợ PCIe 4.0 x4 chế độ) Chipset Intel® B760 Khe M.2_2 (Key M), loại 2242/2260/2280 (hỗ trợ PCIe 4.0 x4 chế độ) 4 cổng SATA 6Gb/s * Công nghệ Intel® Rapid Storage hỗ trợ SATA RAID 0/1/5/10. |
MainBoard | PRIME B760M-K D4 |
