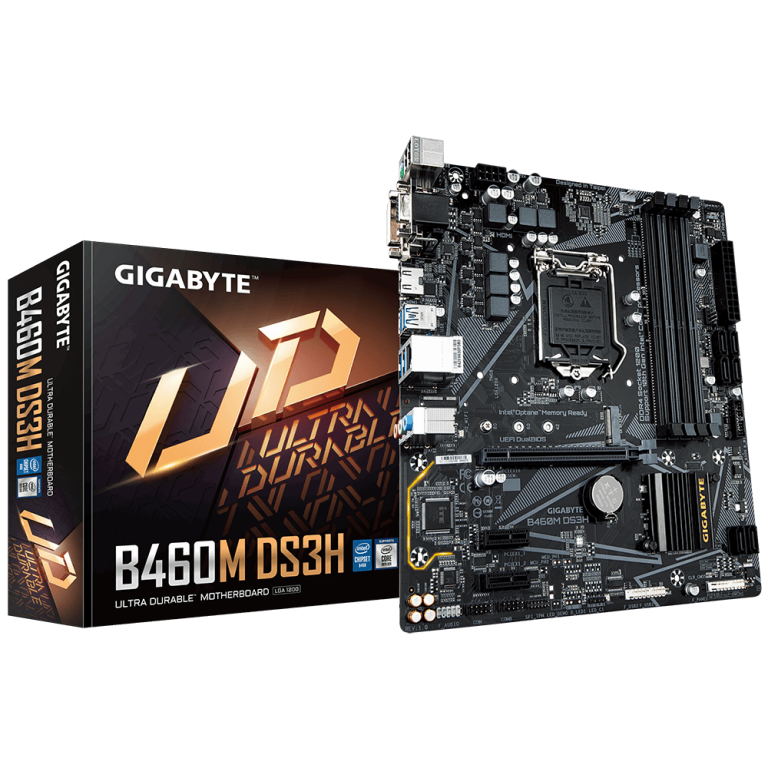

Mainboard Gigabyte B460M DS3H
Liên hệ báo giáXin vui lòng Zalo: 0984 104 265 để cập nhật giá mới nhất!
- Ram hỗ trợ: 4 x DDR4 DIMM sockets of system memory
Dual channel memory architecture - Kiểu Sockets Supported: Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
- Chipset: Intel® B460 Express Chipset
- Chuẩn RAM: supporting up to 128GB (32 GB single DIMM capacity)
Mô tả
Thông số sản phẩm
Bảo hành | 36 tháng |
Ram hỗ trợ | 4 x DDR4 DIMM sockets of system memory Dual channel memory architecture |
Kiểu Sockets Supported | Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package |
Chipset | Intel® B460 Express Chipset |
khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x1 slots |
LAN – WiF | Realtek® GbE LAN chip (1000/100 Mbit) |
Âm thanh | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
Operating System Support | Support for Windows 10 64-bit |
Cổng I / O phía sau | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
Cổng I/O ở trong | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x serial port headers 1 x Clear CMOS jumper |
Chuẩn thiết kế ATX | Micro ATX Form Factor; 24.4cm x 22.5cm |
Cổng lưu trữ / kết nối | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers |
Chuẩn RAM | supporting up to 128GB (32 GB single DIMM capacity) |
Đồ họa | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz |
