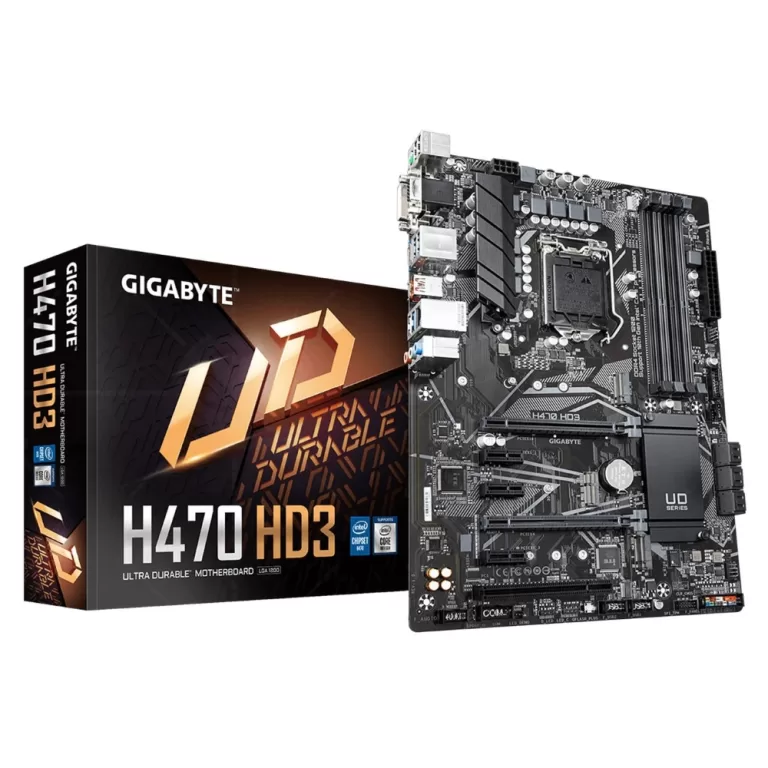

Mainboard Gigabyte H470 HD3
Liên hệ báo giáXin vui lòng Zalo: 0984 104 265 để cập nhật giá mới nhất!
- Ram hỗ trợ: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture - Kiểu Sockets Supported: Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron
- Chipset: Intel® H470 Express Chipset
- Chuẩn RAM: supporting up to 128GB (32 GB single DIMM capacity)
Mô tả
Thông số sản phẩm
Bảo hành | 36 tháng |
Ram hỗ trợ | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture |
Kiểu Sockets Supported | Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron |
Chipset | Intel® H470 Express Chipset |
khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots 1 x PCI slot 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI) |
LAN – WiF | Intel® GbE LAN chip (1000 Mbit/100 Mbit) |
Âm thanh | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
Operating System Support | Support for Windows 10 64-bit |
Cổng I / O phía sau | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
Cổng I/O ở trong | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
Chuẩn thiết kế ATX | ATX Form Factor; 30.5cm x 22.5cm |
Cổng lưu trữ / kết nối | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors Intel® Optane™ Memory Ready |
Chuẩn RAM | supporting up to 128GB (32 GB single DIMM capacity) |
Đồ họa | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz |
