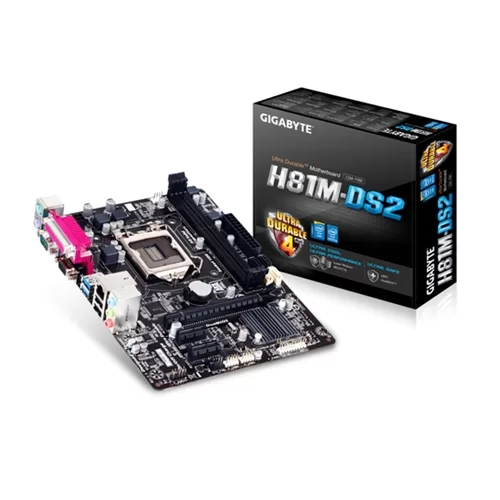

Mainboard Gigabyte H81M-DS2
1.546.000 ₫
Xin vui lòng Zalo: 0984 104 265 để cập nhật giá mới nhất!
- Ram hỗ trợ: 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules - Kiểu Sockets Supported: Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU - Chipset: Intel® H81 Express Chipset
Mô tả
Thông số sản phẩm
Bảo hành | 36 tháng |
Ram hỗ trợ | 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules |
Kiểu Sockets Supported | Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU |
Chipset | Intel® H81 Express Chipset |
khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots |
LAN – WiF | Realtek® GbE LAN chip (10/100/1000 Mbit) |
Âm thanh | Realtek® ALC887 codec High Definition Audio |
Operating System Support | Support for Windows 10/8.1/8/7 |
Cổng I / O phía sau | 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x parallel port 1 x serial port 1 x D-Sub port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) |
Cổng I/O ở trong | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
Chuẩn thiết kế ATX | Micro ATX Form Factor; 22.6cm x 17cm |
Cổng lưu trữ / kết nối | 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices |
Đồ họa | 1 x D-Sub port, supporting a maximum resolution of 1920×1200 Maximum shared memory of 1 GB |
