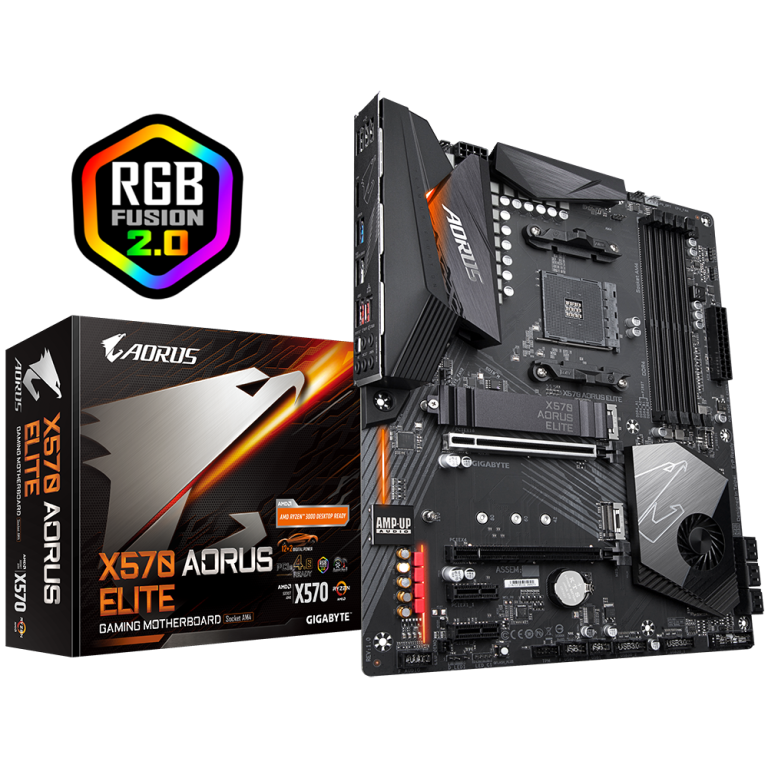

Mainboard Gigabyte X570 AORUS ELITE
Liên hệ báo giáXin vui lòng Zalo: 0984 104 265 để cập nhật giá mới nhất!
- Ram hỗ trợ: 4 Khe ram 4000/ 3866 / 3800 / 3733 / 3600/ 3466 / 3400 / 3333/ 3300 / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- Kiểu Sockets Supported: AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
- Chipset: AMD X570
- Chuẩn RAM: supporting up to 128GB (32GB single DIMM capacity)
Mô tả
Thông số sản phẩm
Bảo hành | 36 tháng |
Ram hỗ trợ | 4 Khe ram 4000/ 3866 / 3800 / 3733 / 3600/ 3466 / 3400 / 3333/ 3300 / 3200 / 2933 / 2667 / 2400 / 2133 MHz |
Kiểu Sockets Supported | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors |
Chipset | AMD X570 |
khe cắm mở rộng | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 |
LAN – WiF | Intel® GbE LAN chip (10/100/1000 Mbit) |
Âm thanh | Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
Operating System Support | Support for Windows 10 64-bit |
Cổng I / O phía sau | 4 x USB 2.0/1.1 ports 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
Cổng I/O ở trong | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
Chuẩn thiết kế ATX | ATX Form Factor; 30.5cm x 24.4cm |
Cổng lưu trữ / kết nối | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 8 x USB 2.0, 10 x USB 3.2 Gen 1 , 1 x USB Type-C |
Chuẩn RAM | supporting up to 128GB (32GB single DIMM capacity) |
Đồ họa | 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
